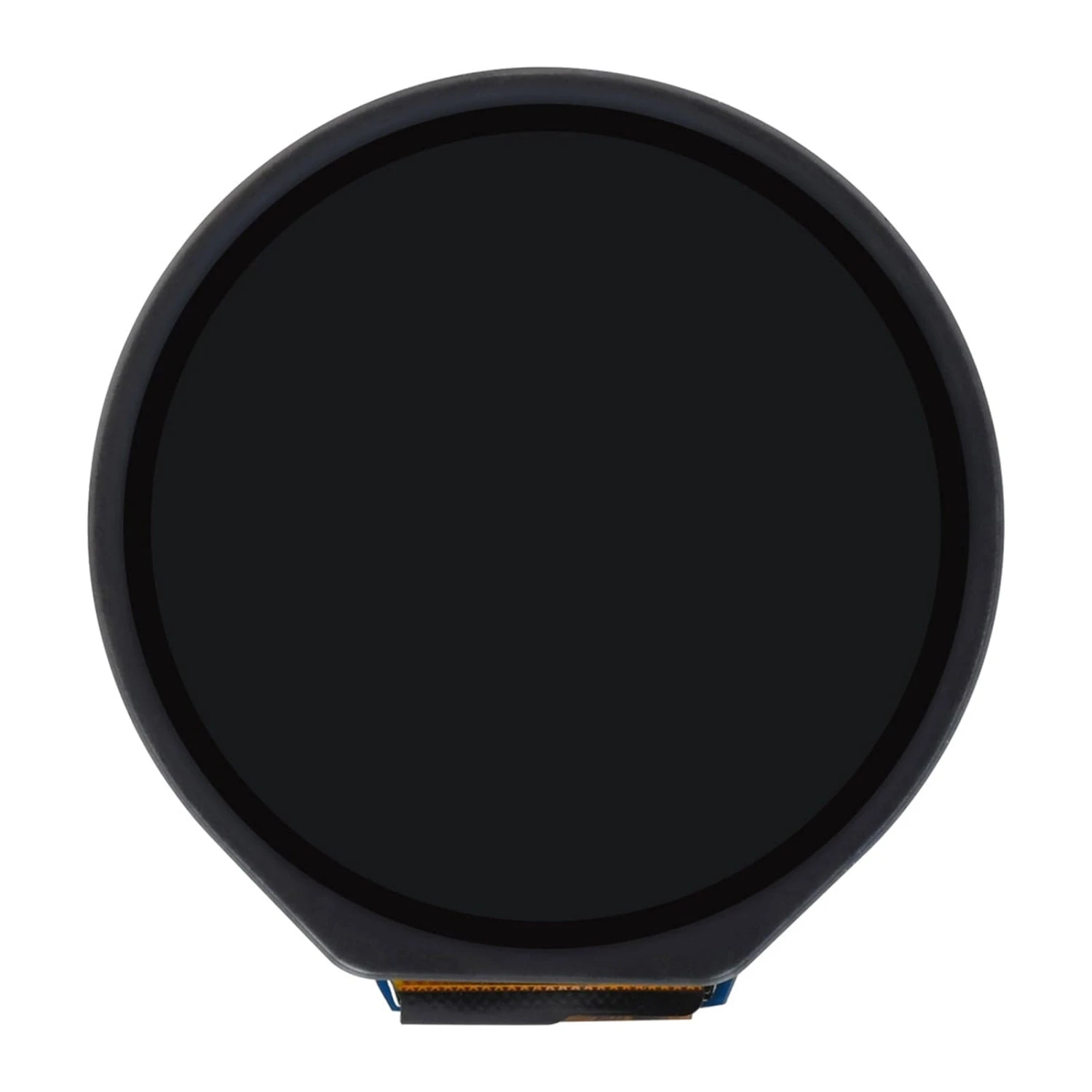

1.28″ Round Touchscreen LCD Display Module

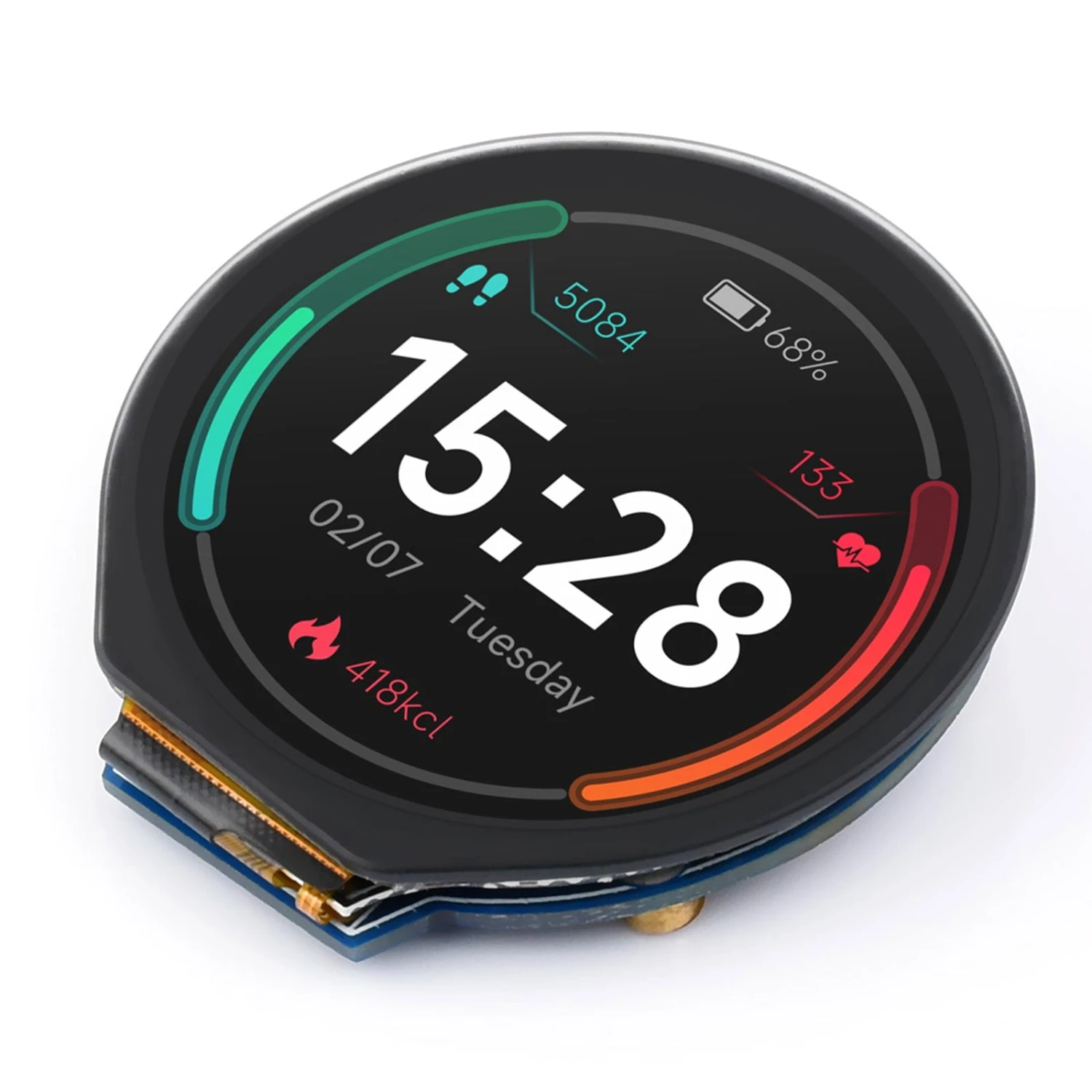

Don’t be a square, be round! Treat your next project to one of these round, touchscreen LCD displays for an impressive interface to menus, on-screen buttons and more.

This awesome 1.28″ touchscreen display features a 240×240 resolution with 65K RGB colours for a clear and colourful interface. Mix that with the SPI and I2C communication and you’ve got a great-looking touch display for your project without hogging all of your GPIO pins.

You can use an array of

development boards

with this display, with demo code provided in the

online wiki

for

Raspberry Pi

,

Raspberry Pi Pico

,

Arduino

and STM32.

The display comes complete with a GH1.25 13-pin cable which has female headers ready to connect to your microcontroller.

We also offer a

non-touch version

, a more affordable option for projects that don’t require a touchscreen interface.

Features

• 1.28″ round display
• Touchscreen panel
• 240×240 resolution
• 65K colours
• SPI and I2C communication
• High touch screen transmittance, fast response and long lifetime
• Embedded GC9A01 driver chip
• Embedded  CST816S capacitive touch control chip

• Online development resources and manual

  (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Specifications

Operating voltage	3.3V / 5V
LCD controller	GC9A01
Touch controller	CST816S
Display panel	IPS
Display dimensions	32.4mm

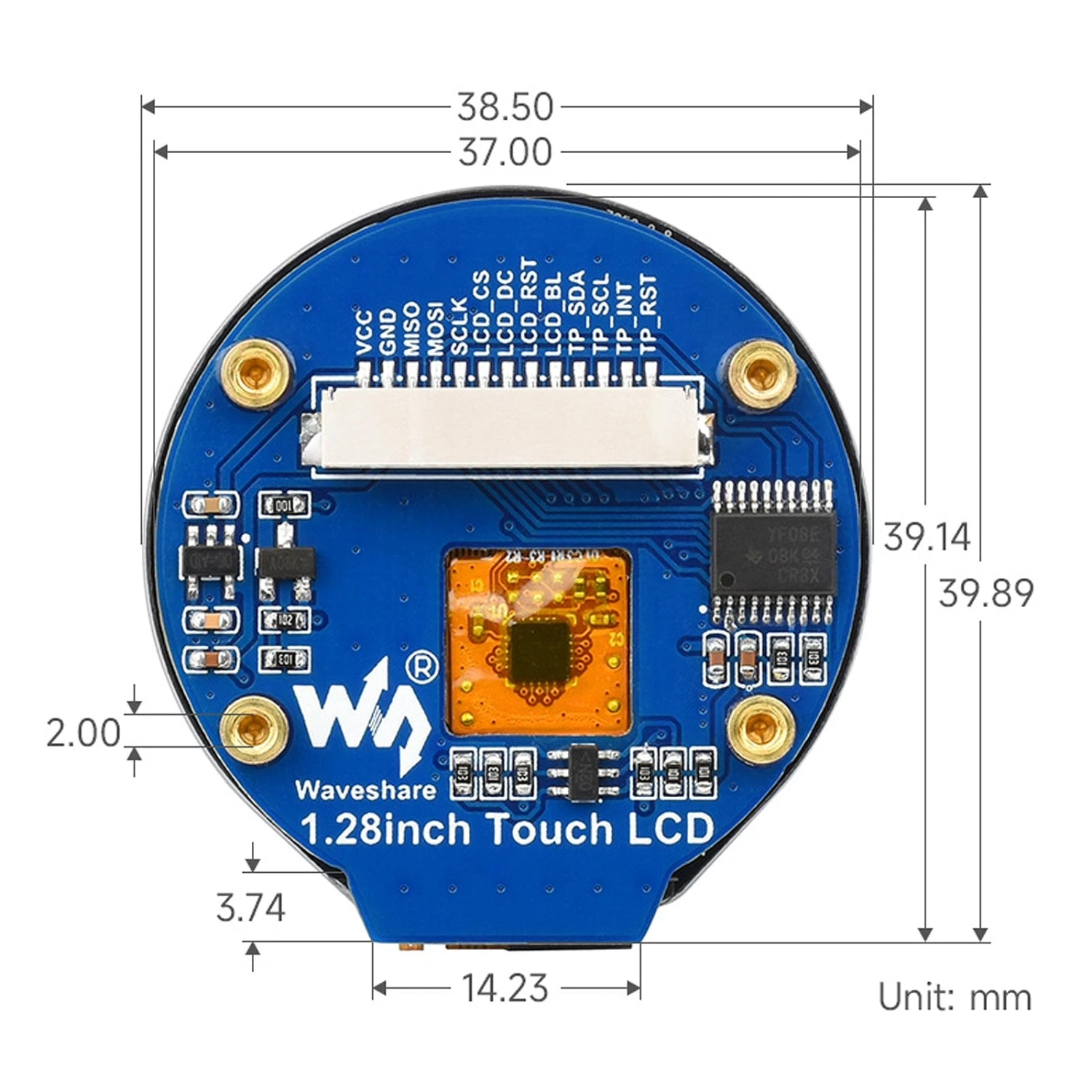

Dimensions	39.15 × 37mm x 38.5mm
Resolution	240 × 240 pixels
Communication interface	4-wire SPI
Communication interface	I2C
Touch type	Capacitive
Pixel size	0.135 × 0.135mm

Resources

• Product Wiki

• Schematic

• GC9A01A Datasheet

• CST816S Register Datasheet

• CST816S Datasheet

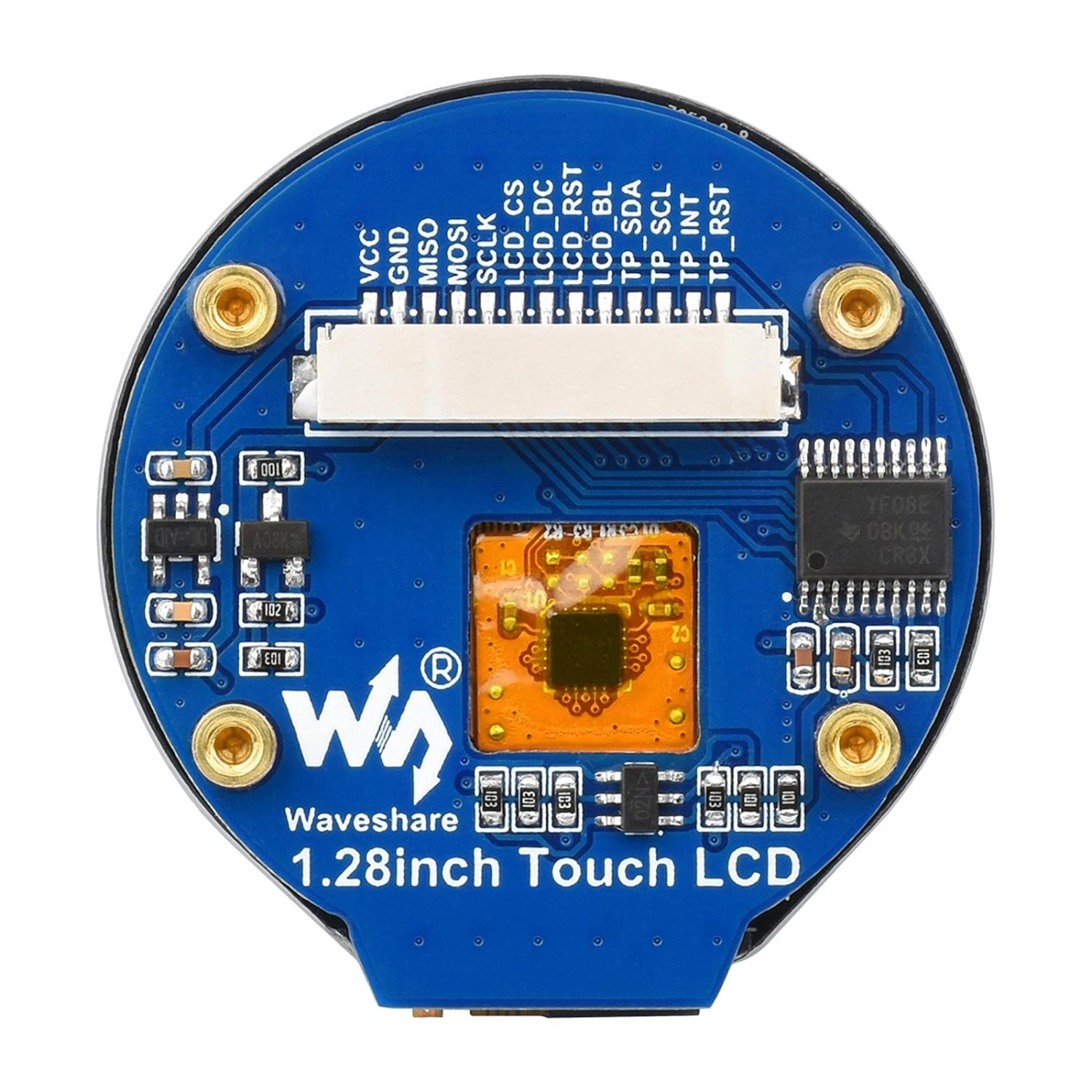

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
MISO	SPI MISO pin
MOSI	SPI MOSI pin
SCLK	SPI Clock pin
LCS_CS	LCD Chip Selection, low active
LCS_DC	LCD Data/Command selection (high for data, low for command)
LCS_RST	LCD Reset, low active
LCS_BL	LCD Backlight
TP_SDA	TP Data pin
TP_SCL	TP Clock pin
TP_INT	TP Interrupt pin
TP_RST	TP Reset, low active

Package Contents

• 1x 1.28″ Touchscreen round LCD
• 1x GH1.25 13-pin cable
