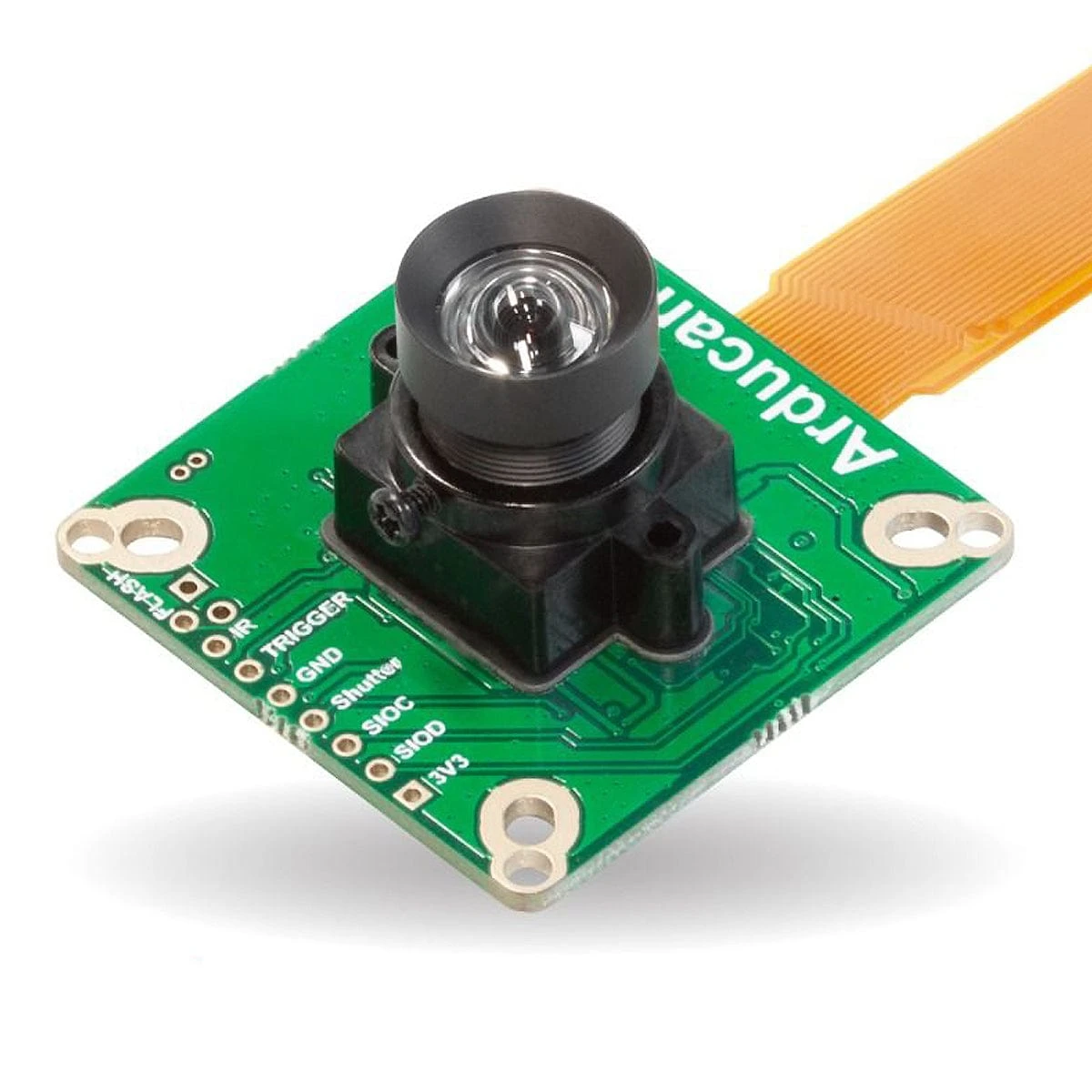

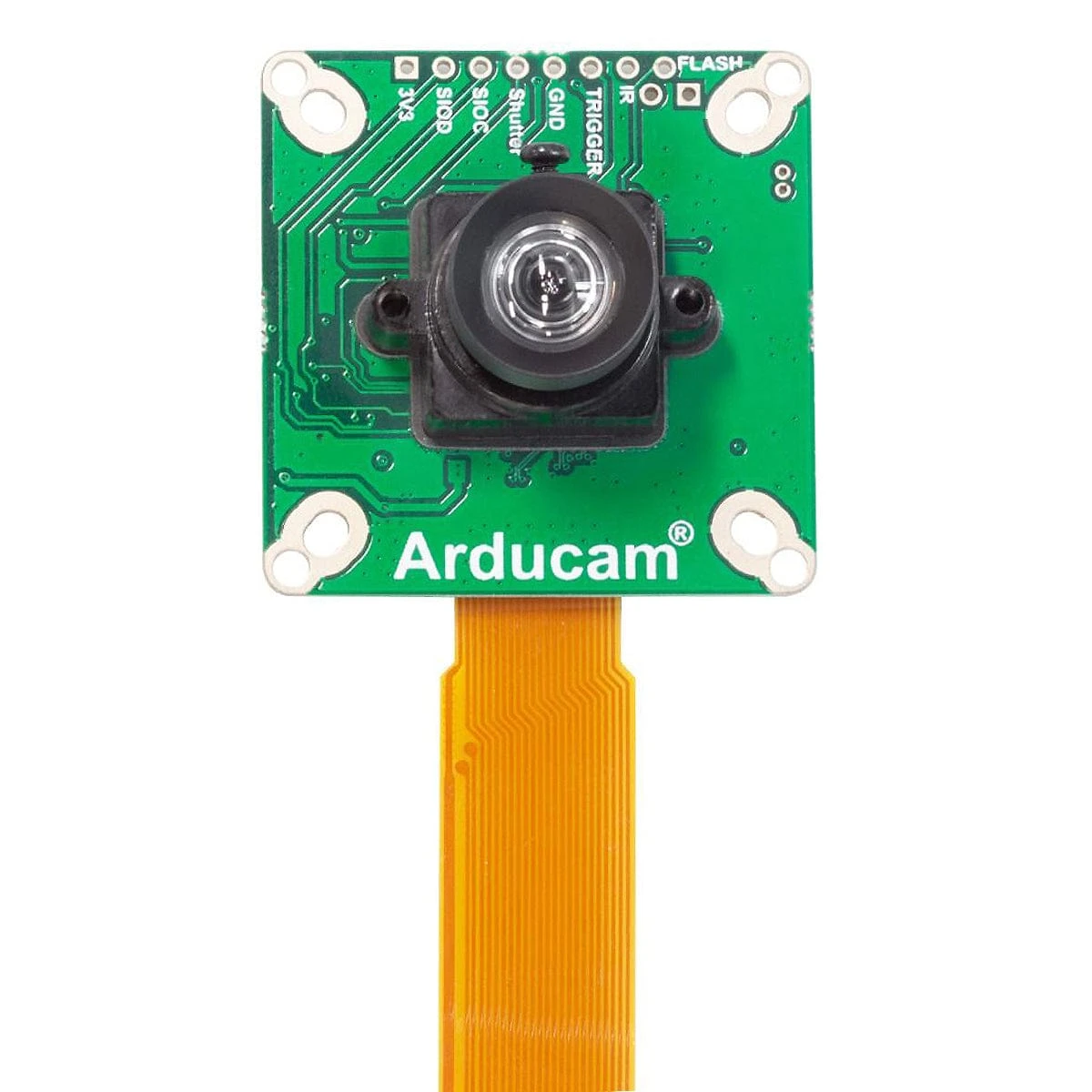

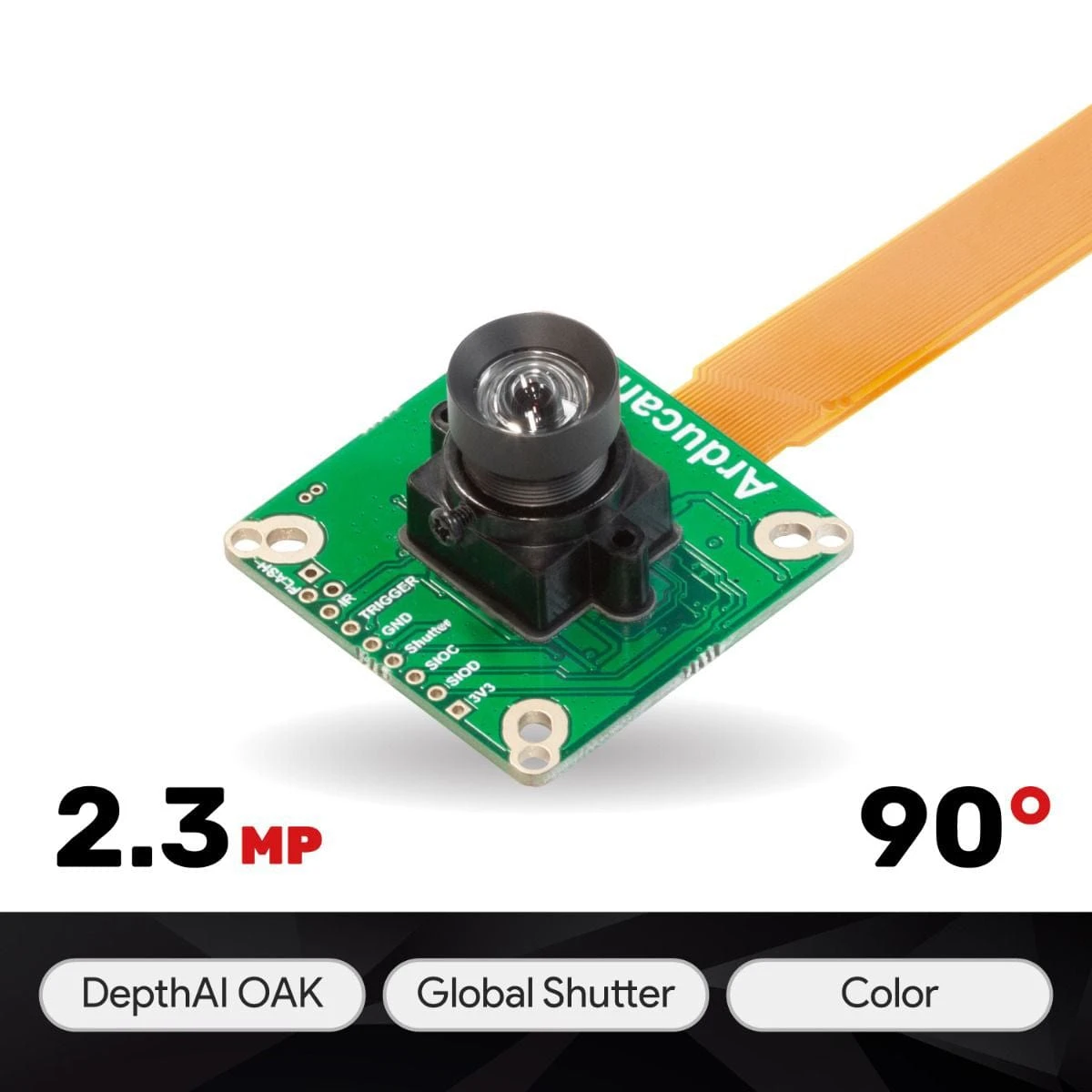

AR0234 Colour Global Shutter Camera Module For DepthAI OAK

The

Arducam

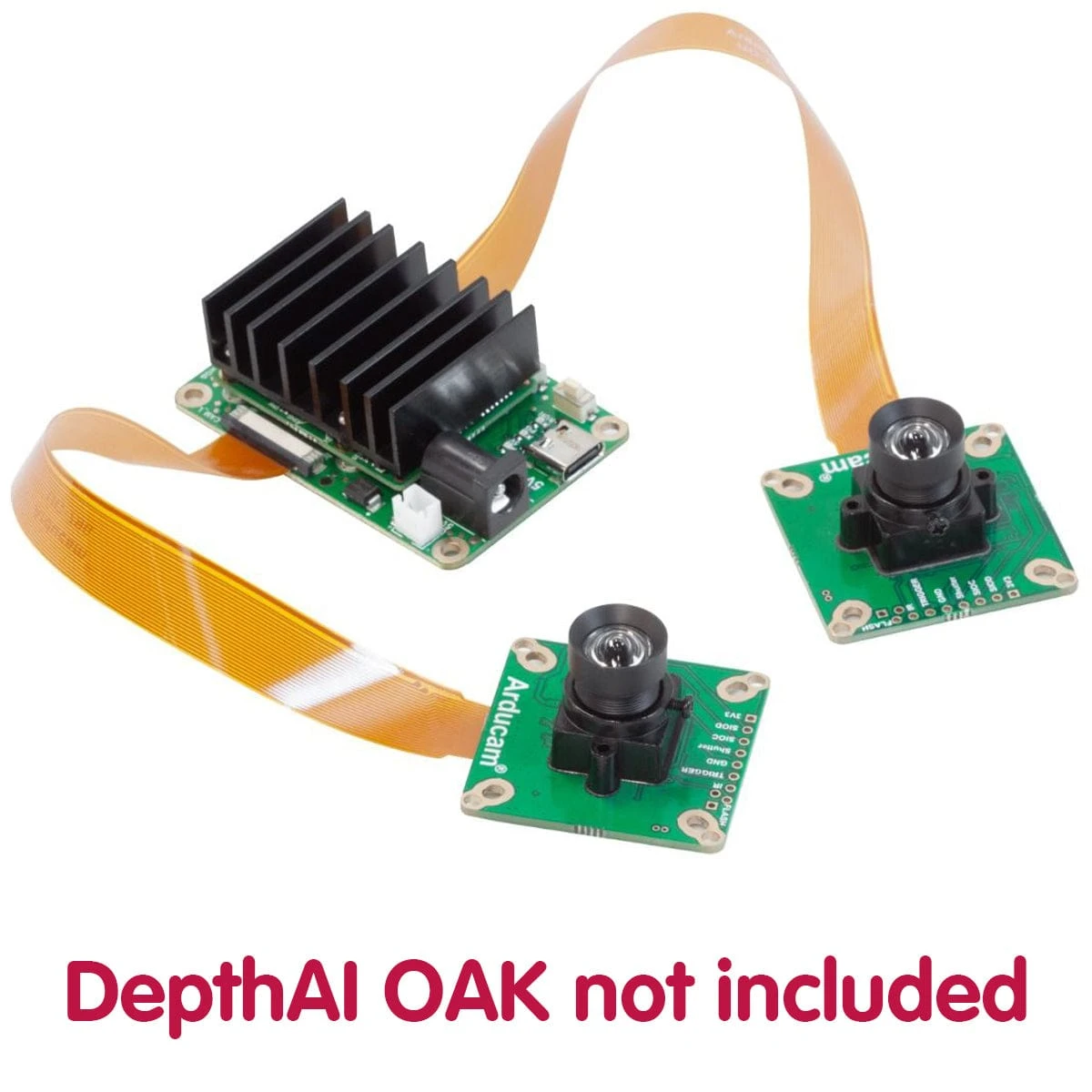

2.3MP AR0234 Global Shutter Color MIPI camera module is designed for DepthAI OAK and offers a maximum frame rate of 1920×120 @ 120FPS. It includes a low-distortion M12 lens with 90-degree viewing angles.

Supported DeptAI version: BW1098FFC R0M0E0

Specifications

• Sensor: Color global shutter AR0234
• Pixel Size: 3 μm x 3 μm
• Active array size: 1920x 1200
• Optical Size: 1/2.6 inch
• Focusing Range: 20cm ~ infinite
• IR Sensitive: With IR filter
• Output interface: MIPI 2-Lane
• Output formats: RAW8/RAW10
• Maximum frame rate: 1920x 1200@120 fps
• Board Size: 38mm x 38mm
• Lens: Low distortion M12 lens
• EFL: 3.6mm
• F.N: 3.0
• HFOV: 90 Deg

Package Contents

• 1x Arducam 2.3MP AR0234 Global shutter Colour MIPI camera module
• 1x 150mm 20-26pin FPC cable

Resources

• Product Wiki
