Assembled Adafruit 0.56″ 4-Digit 7-Segment Display – W/ I2C Backpack QT – White

What’s better than a single LED? Lots of LEDs! A fun way to make a small display is to use an 8×8 matrix or a

4-digit 7-segment display

. Matrices like these are ‘multiplexed’ – so to control all the seven-segment LEDs you need 14 pins. That’s a lot of pins, and there are

driver chips like the MAX7219

that can control a matrix for you but there’s a lot of wiring to set up and they take up a ton of space. Here at Adafruit we feel your pain! After all, wouldn’t it be awesome if you could control a matrix without tons of wiring? That’s where these adorable LED matrix backpacks come in. We have them in two flavours – a mini 8×8 and a 4-digit 0.56″ 7-segment. They work perfectly with the matrices we stock from Adafruit and make adding a bright little display trivial.

The matrices use a driver chip that does all the heavy lifting for you: They have a built-in clock so they multiplex the display. They use constant-current drivers for ultra-bright, consistent colour (the images above are photographed at the dimmest setting to avoid overloading our camera!), 1/16 step display dimming, all via a simple I2C interface. The backpacks come with address-selection jumpers so you can connect up to four mini 8×8’s or eight 7-segments (or a combination, such as four mini 8×8’s and four 7-segments, etc) on a single I2C bus.

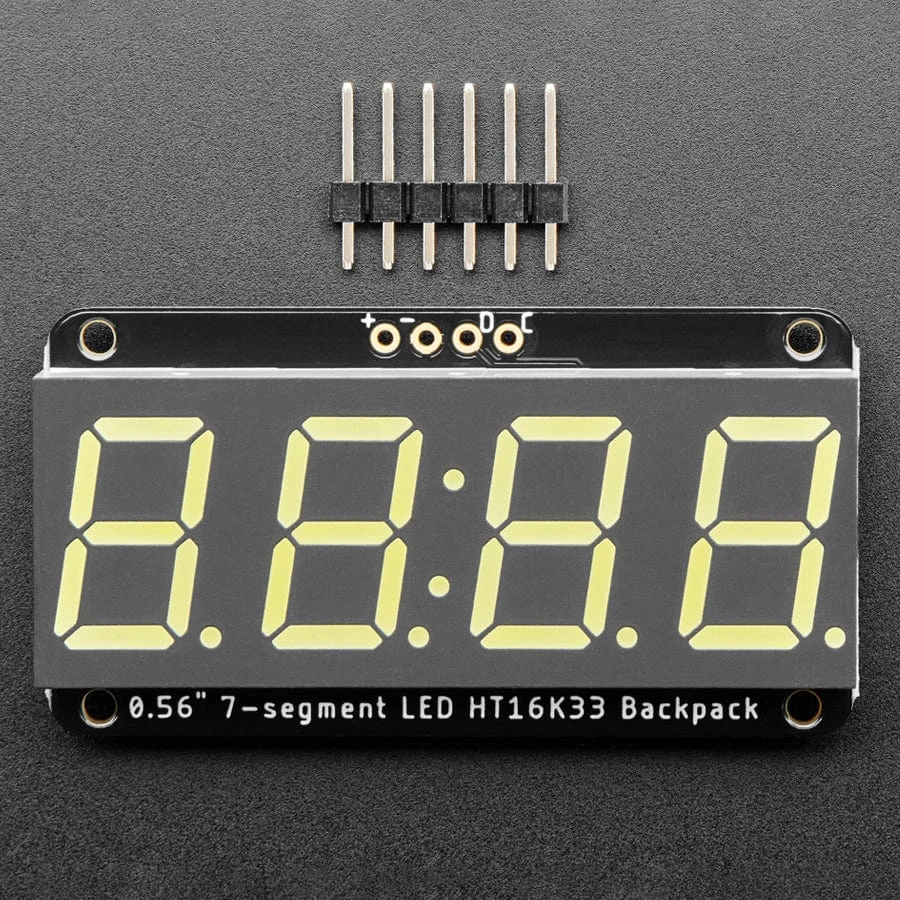

The product kit comes with:

• A fully tested and assembled LED backpack with a pre-soldered

  ultra-bright 4-digit 0.56″ tall blue seven-segment display

• 4-pin header

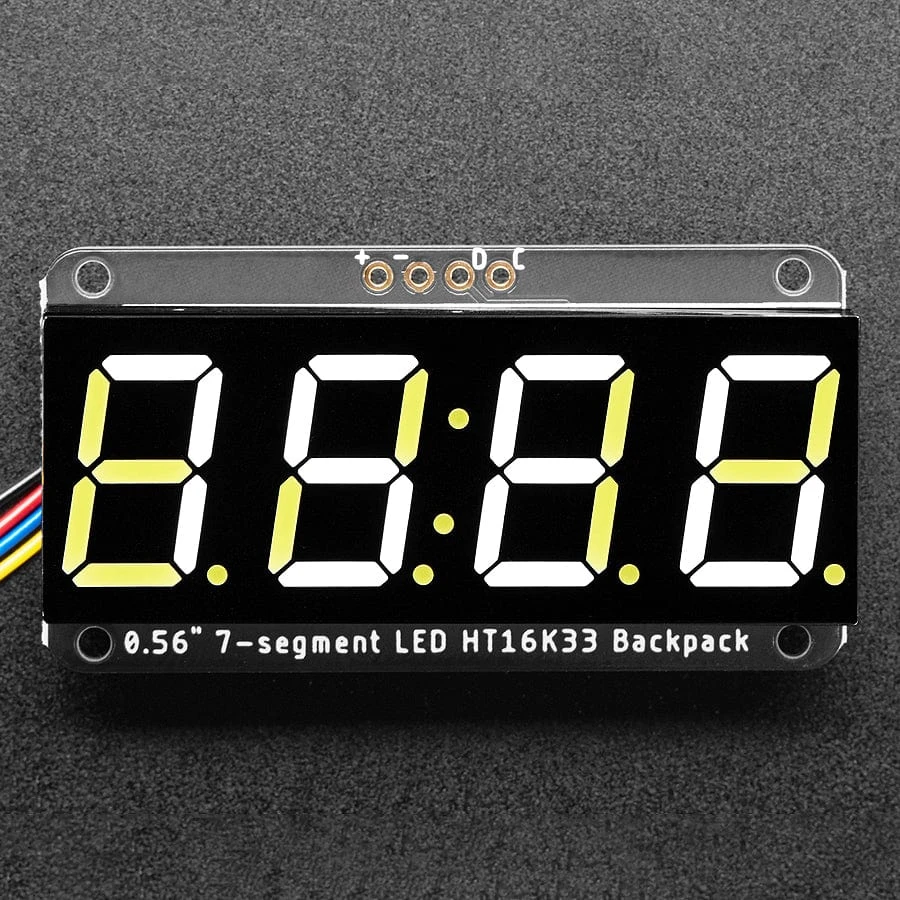

To get you going fast, we have revised this popular board to be the same size and pinout as before but now with two

STEMMA QT connectors

on either side that are compatible with the

SparkFun Qwiic

I2C connectors. This allows you to make solderless connections between your development board and the HT16K33 or to chain it with a wide range of other sensors and accessories using a

compatible cable

.

Of course, in classic Adafruit fashion,

we also have a detailed tutorial showing you how to solder, wire, and control the display

. We even wrote

a very nice library for the backpacks so you can get running in under half an hour, displaying images on the matrix or numbers on the 7-segment

. If you’ve been eyeing matrix displays but hesitated because of the complexity, this is the solution you’ve been looking for!

Specifications

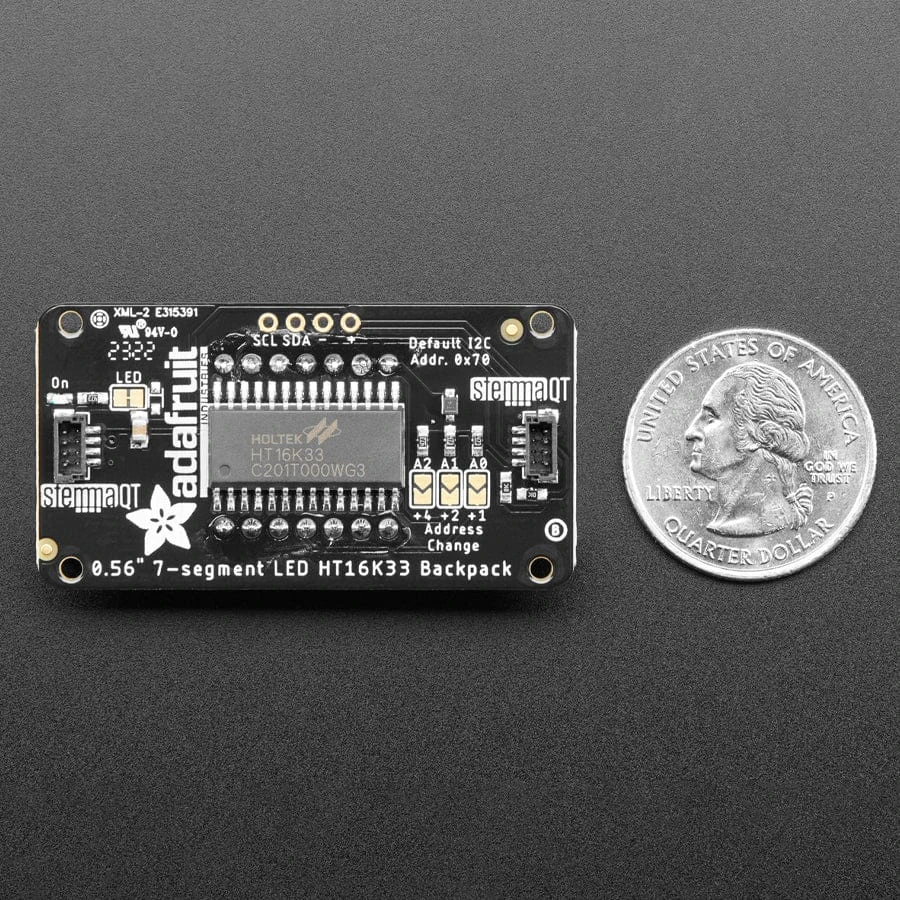

This board/chip uses an I2C 7-bit address between 0x70-0x77, selectable with jumpers

• Backpack Dimensions: 50.0mm x 26.7mm x 6.0mm

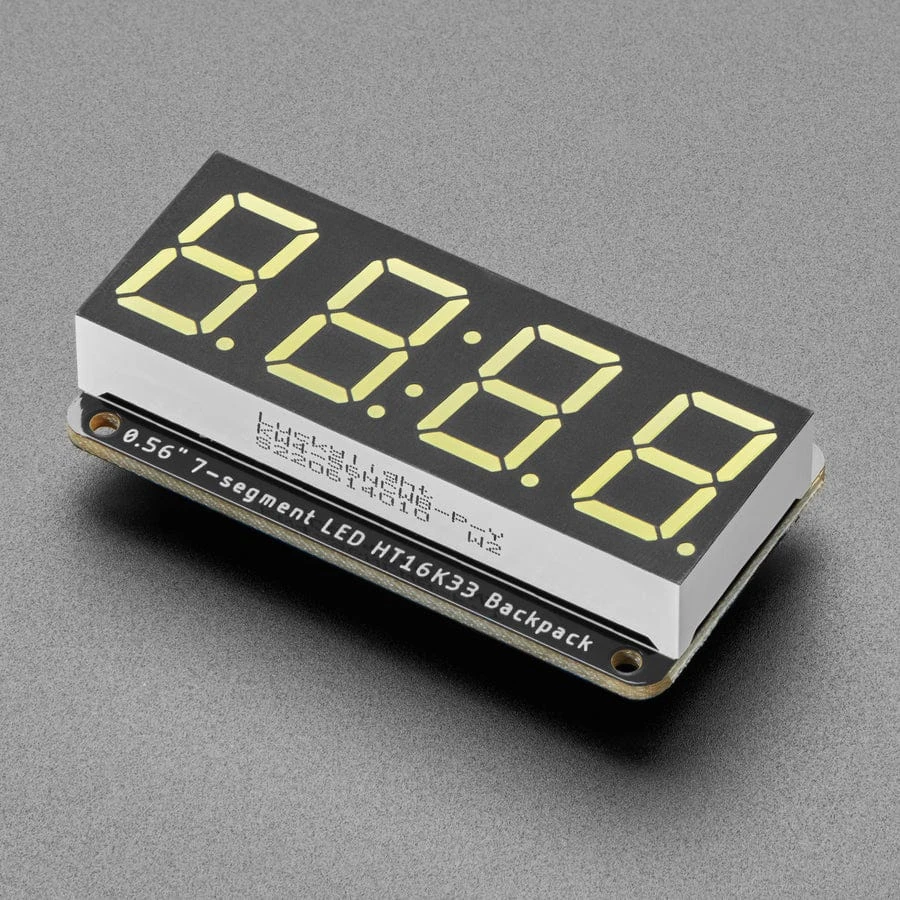

• 7-Segment Display Dimensions: 19mm x 50mm x 14mm
• Overall Weight: 14.5g

Resources

• Datasheets, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial

• Code library
