AZ-Touch Pi Zero – Wall Mounting Touchscreen Set

Original price was: $40.83.Current price is: $28.58.

Friendly, efficient service, always online.

Fast reliable delivery options

Quality products, fair prices.

Shop with confidence, enjoy free returns.

After the success of our AZ-Touch wall housing for other microcomputers, Zihatec has released this version for the

Raspberry Pi Zero

An excellent way to add a professional finish to your home automation, metering, monitoring, control and other home IoT projects. Check out the

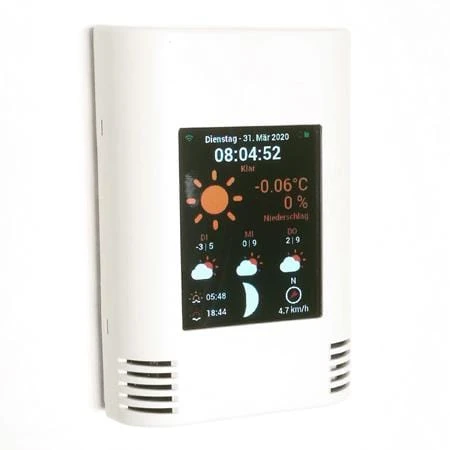

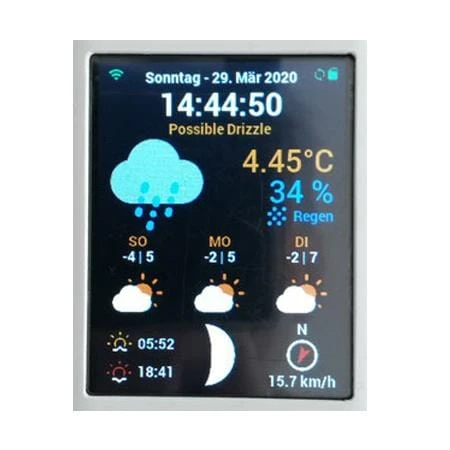

weather station

and

code lock

project examples!

There are many touchscreen add-ons for the Raspberry Pi and Pi Zero, but often without a suitable housing for wall mounting – and usually with larger screen diagonals and therefore not in the compact size of a light switch or thermostat.

This makes the AZ-Touch Pi Zero particularly suitable for small applications in the field of home automation, metering, monitoring, control and other typical IoT applications.

Note: Does not include a

Raspberry Pi Zero

Features

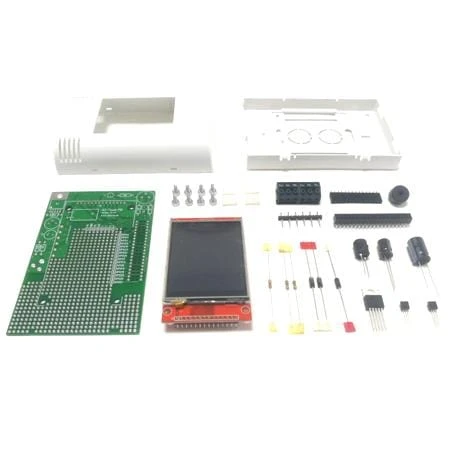

Touchscreen

The kit comes with a 2.8″ touchscreen with integrated ILI9341 display controller with communication via SPI. The touch controller is an XPT2046 with resistive touch.

Compatibility

The AZ-Touch Pi0 can be used together with:

Raspberry Pi Zero
Raspberry Pi Zero W / WH

Vertical and Horizontal Mounting

Depending on your project and software you can mount the enclosure vertically or horizontally on the wall or in front of a flush wall mount box.

Easy Installation

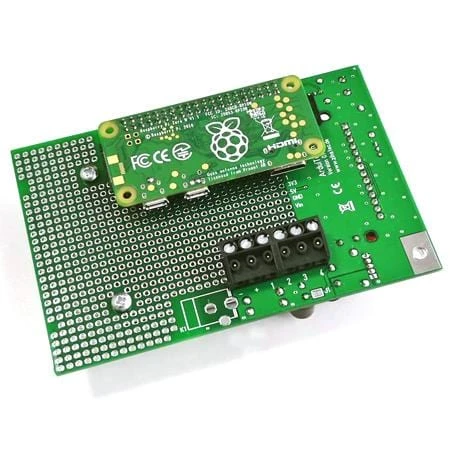

A removable terminal block makes installation even easier. The PCBs are mounted on the enclosure allowing rapid substitution of devices when required and facilitating easy assembling/disassembling of the enclosure.

Power Supply

The AZ-Touch PCB comes with an integrated switching regulator for input voltages from 9-35V DC. You can connect a power supply via the terminal or an

optional DC socket

(which works well with

our 9V power supply

)

Acoustics

The integrated piezo buzzer (resonance frequency 4kHz) can be used to generate acoustic feedback, acknowledge tones or play melodies.

Breadboard

A small breadboard area on top of the PCB can be used to add your own components. 4 poles of the terminal are connected together with a number of GPIO pins, with voltages available beside the breadboard.
