and actuators, the EcoDuino system can make your efforts to grow plants much easier.
Version Upgrade: Kit 2.0 has redesigned the PCB to fit the new enclosure. The other feature is same to the last version and the code is compatible.
Build An Automatic Plant Watering System with ESP8266
-
ESP8266 Wifi Bee (Arduino Compatible)
-
Xbee USB adapter (FTDI ready)
-

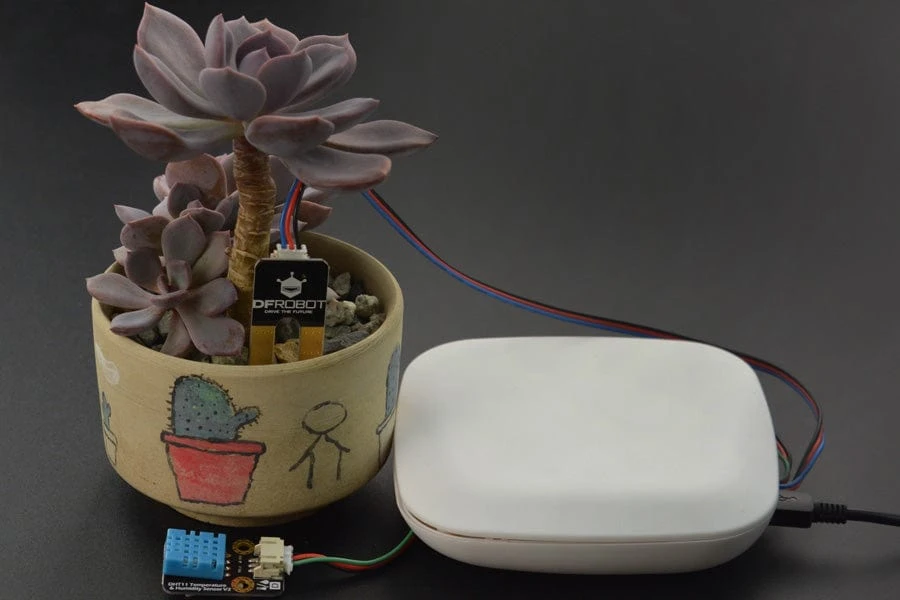

EcoDuino – An Auto Planting Kit

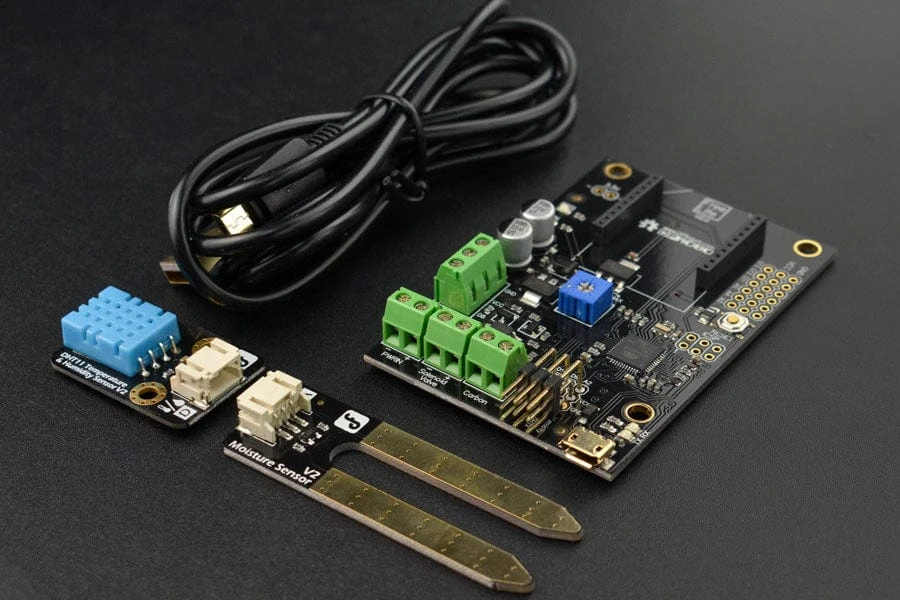

Specification
- Board power supply: 6~12V DC
- Micro controller: Atmega32U4 (Bootloader: Leonardo)
- 4 Analog I/O ports, 5 Digital I/O ports
- Terminal for interfacing a Carbon rod(Soil moisture sensor)
- Terminal for interfacing a DS18B20 temperature sensor(Soil temperature sensor)
- Terminal for interfacing a motor or a solenoid valve
- Potentiometer to set the threshold soil moisture value of watering
- Xbee slot
- Micro USB
- 3.5mm screw terminal
- Board dimensions: 75 x 50 mm
- Diving pump power supply: 4.5~12V DC
- Pumping head: 200cm
- Flow capacity: 100-350L/H
- Power range: 0.5W-5W
- Pump dimensions: 38x38x29mm
- Pump weight: 125g
Documents
-
Product WIKI V2.0
-
DHT11 Datasheet
-
Moisture Sensor Schematics
-
EcoDuino – An Auto Planting Kit español (Spanish)

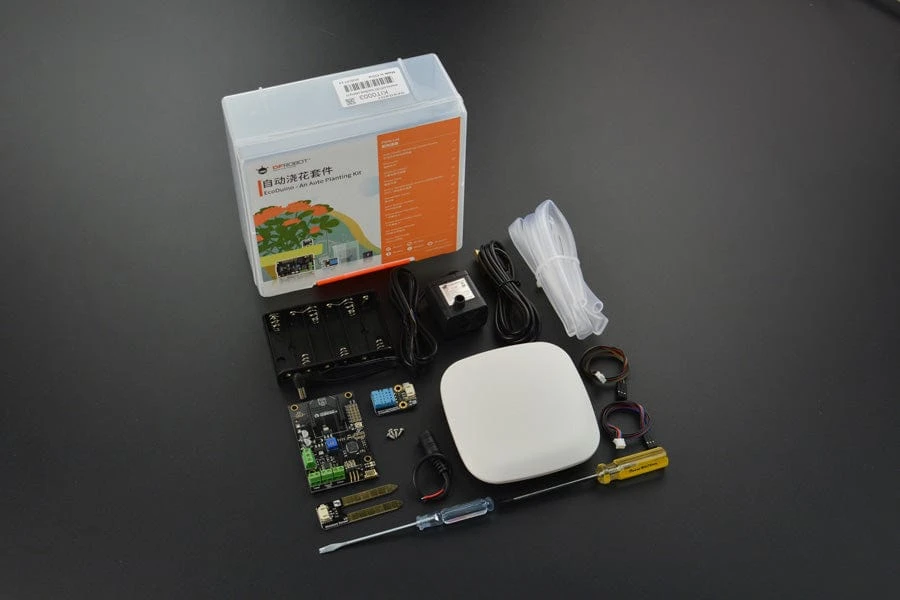

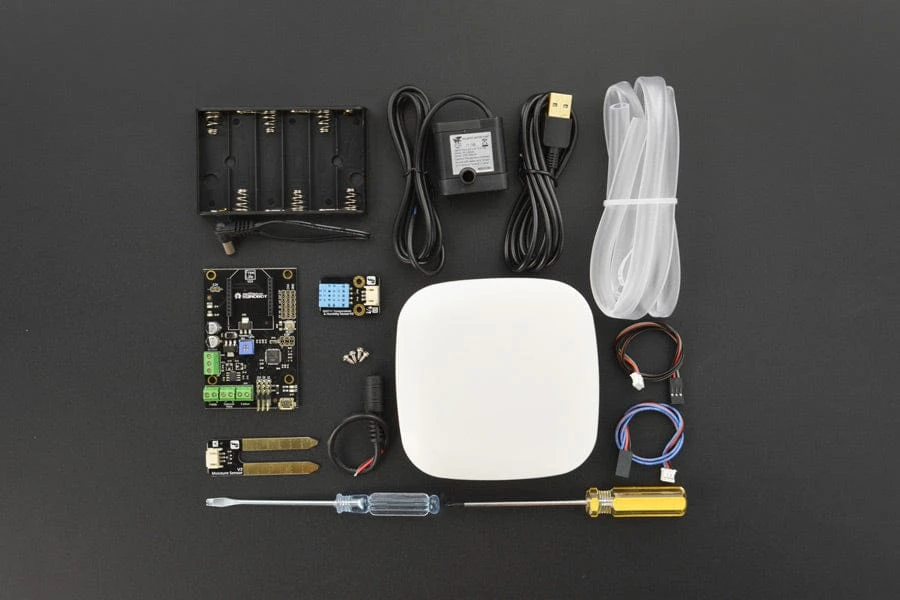

Shipping List
- Free Life – EcoDuino Control Board x1

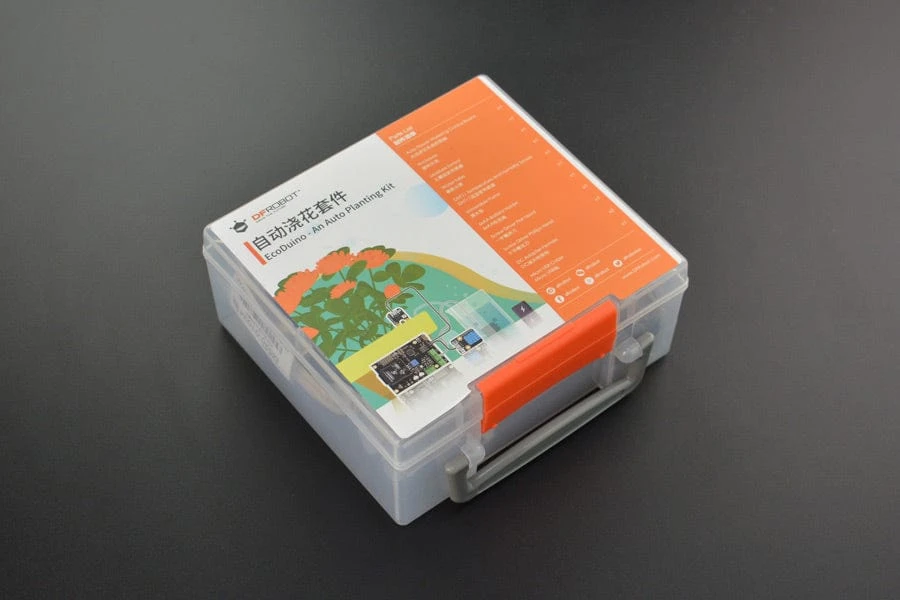

- Enclosure x1
-
Moisture Sensor
(SEN0114) x1
-
DHT11 Temperature and Humidity Sensor
(DFR0067) x1
- Water tube x1
- Immersible pump
-
6xAA Battery Holder with DC2.1 Power Jack
(FIT0141) x1
-
Micro USB cable
(FIT0265) x1
- Screw driver flat head x1
- Screw driver phillips head x1
- DC adapter-Female x2
- Cable x2
Projects
- Testing platform with Ecoduino by Damien Alexandre
- EcoDuino – Arduino based automatic water pump
