Fermion: 1.51” OLED Transparent Display With Converter

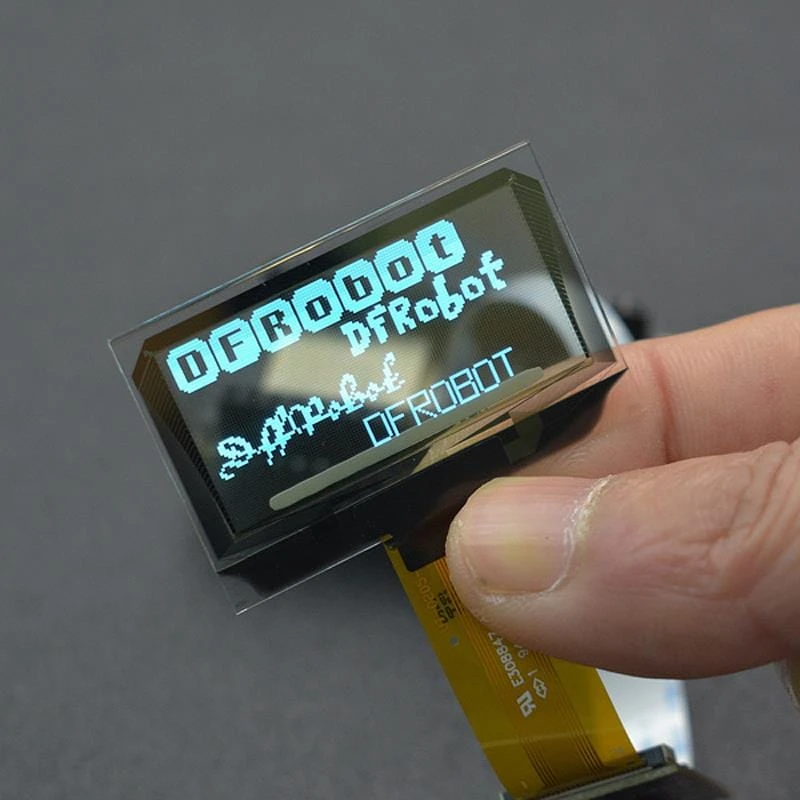

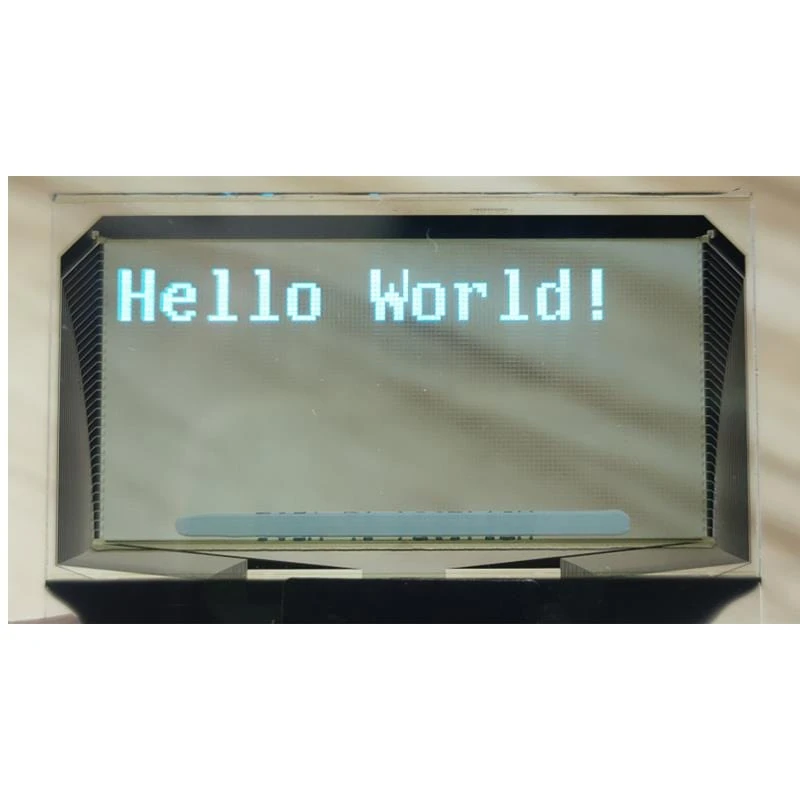

This is a 1.51” SSD1309 transparent monochrome OLED display (light blue) with a converter. It offers a resolution of 128×64 with a full-view blue display (the completely transparent area is 128×56 – there is a small section near the pins that are not transparent but still can display content).

For convenience, the small converter comes with two available connections: GDI and SPI.

The

product wiki

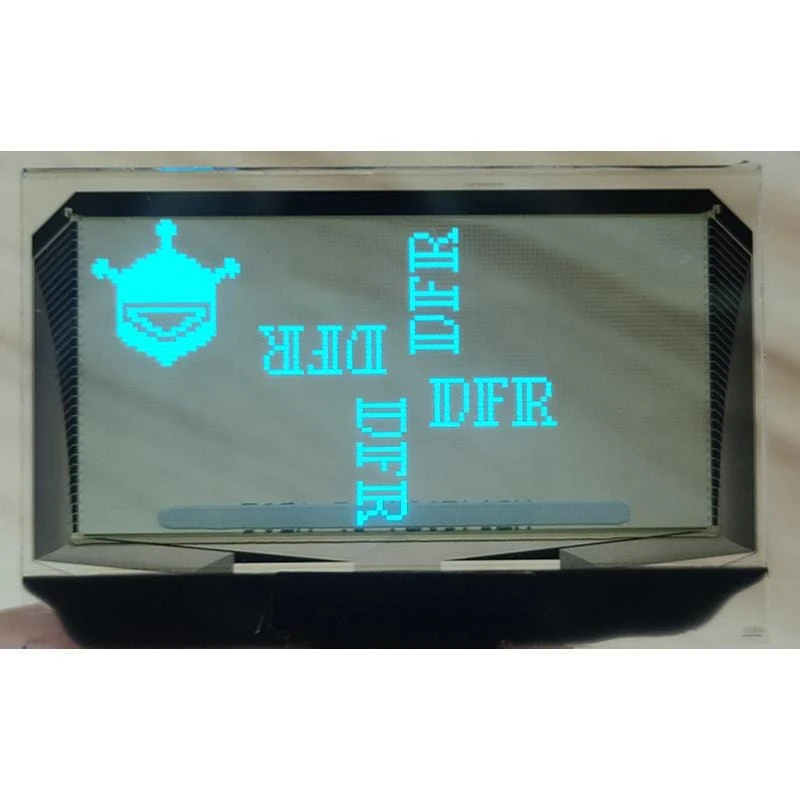

includes a number of different display code examples for meeting the basic requirements of most users.

Connection Example

Features

• Transparent OLED display
• Full-view display
• High resolution
• Blue display

Specification

• Working Voltage: 3.3V
• View Angle: Full view
• Driver Chip: SSD1309
• Converter Interface: SPI and GDI
• Adapter Size: 18 x 28mm
• Display Area: 35.05 x 15.32 (mm)
• Display Color: blue
• Pixel Pitch: 0.274 x 0.274mm
• Screen Size: 42x27mm
• Working Temperature: -40~70 ℃

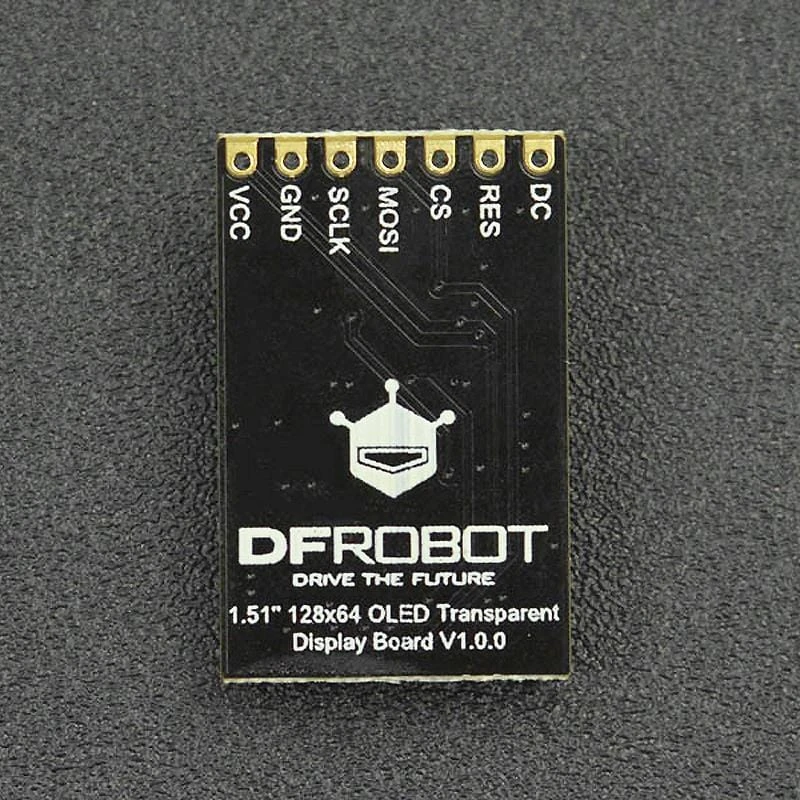

Pinout

Pin	Pin Name	Functions
1	VCC	Power（3.3V-5V）
2	GND	Negative pole
3	SCLK	Clock
4	MOSI	Data (sent by host and received by slave)
5	CS	Screen piece selected
6	RES	Reset
7	DC	Data/Command

Resources

• Product wiki

• Schematics

• 2D.rar

• 3D.rar

• Datasheet

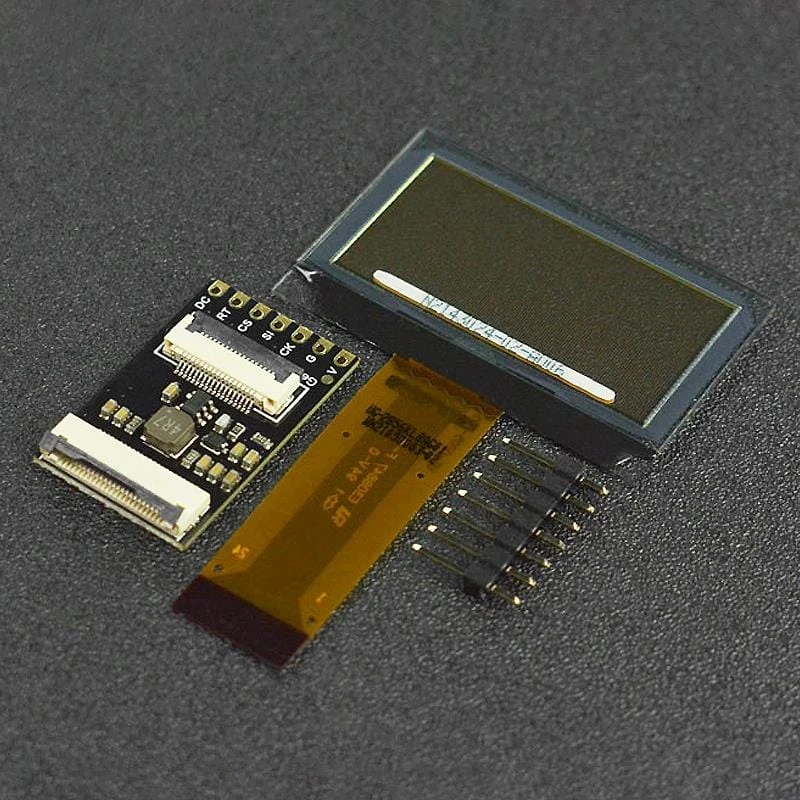

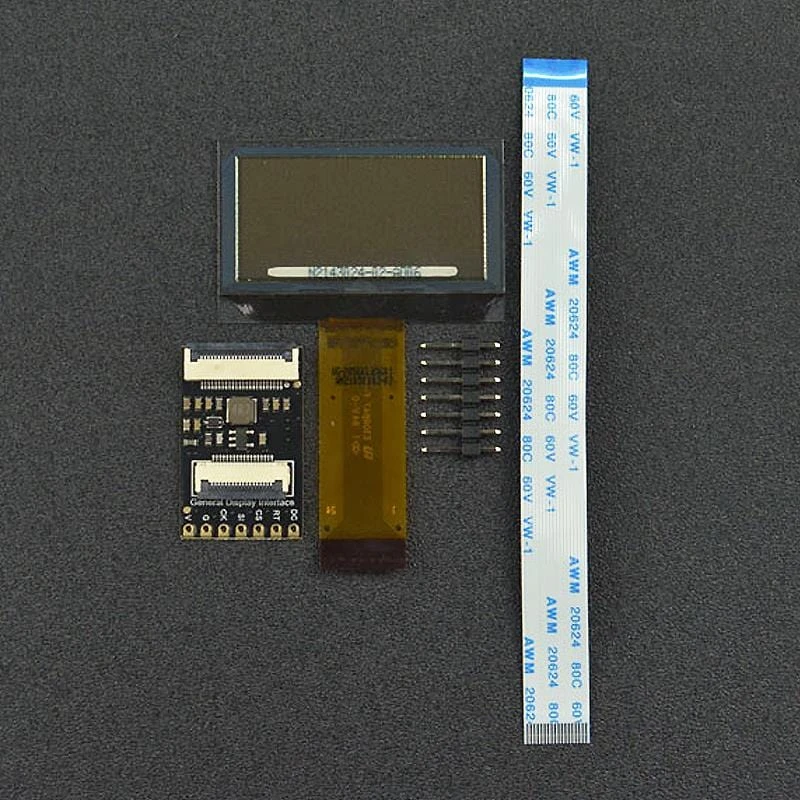

Package Contents

• 1x 1.51″ OLED Transparent Display
• 1x 1.51″ OLED Transparent Display Converter
• 1x 2.54mm Single-row 7-pin Connector
• 1x FPC0.5-18-pin Reverse Direction Cable

Development board not included
