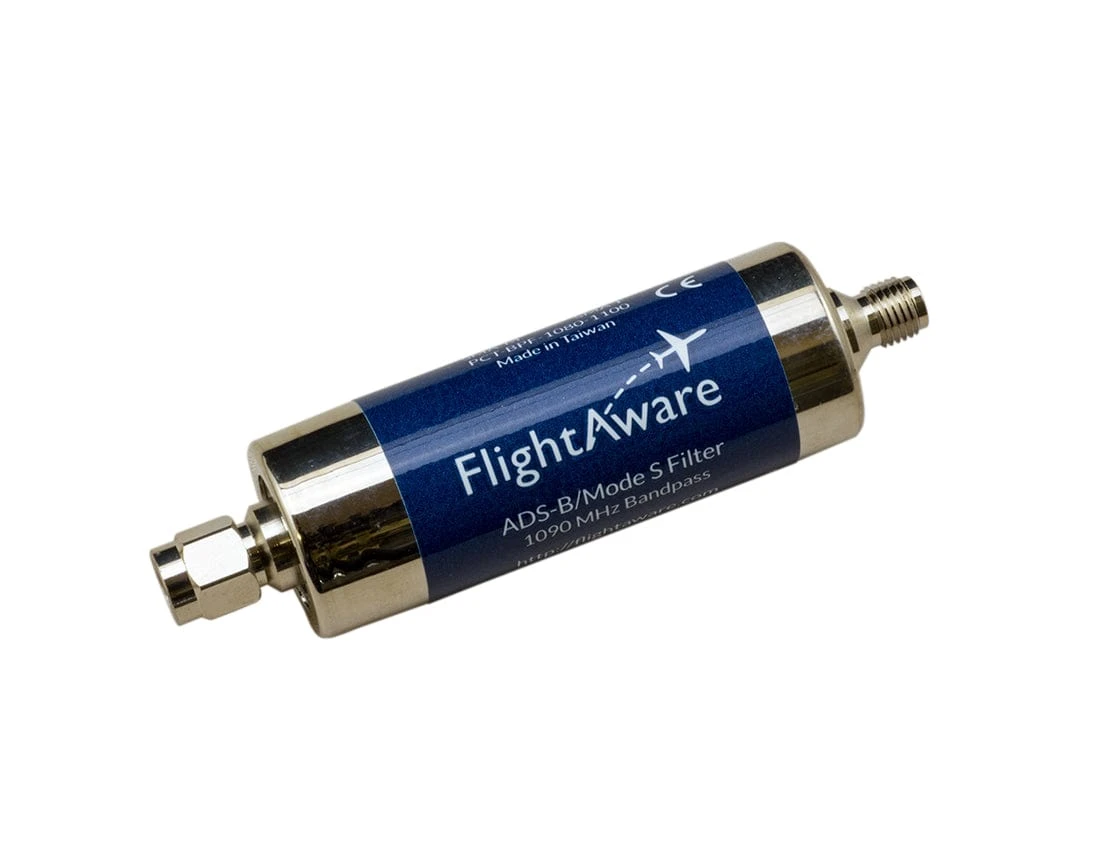

FlightAware 1090 MHz ADS-B Bandpass SMA Filter

SMA (female to male) 1090MHz Mode S filter. Designed to reduce interference and significantly improve valid mesage rate of ADS-B/Mode S receivers.

This is the new 2019 version which features a narrower pass band frequency range of 1080MHz – 1100MHz.

Impedance is 50ohms and insertion loss is <2.5dB.

Features

• 1090MHZ ADS-B / Mode S Filter
• SMA Female to SMA Male
• Pass Band Frequency Range: 1080 – 1100MHz
• Manufacturer PN: PCT-BPF-1080-1100
• Pass Band Insertion Loss: <2.5 dB
• Stop Band Rejection: >30 dB
• Nominal Impedance: 50 Ohm
• Approximate dimensions: 1.5 inches x 2.25 inches
• Reduces RF noise, increasing number of ADS-B/Mode S messages
• Ideal for RTL-SDR USB Dongle receivers like PiAware
