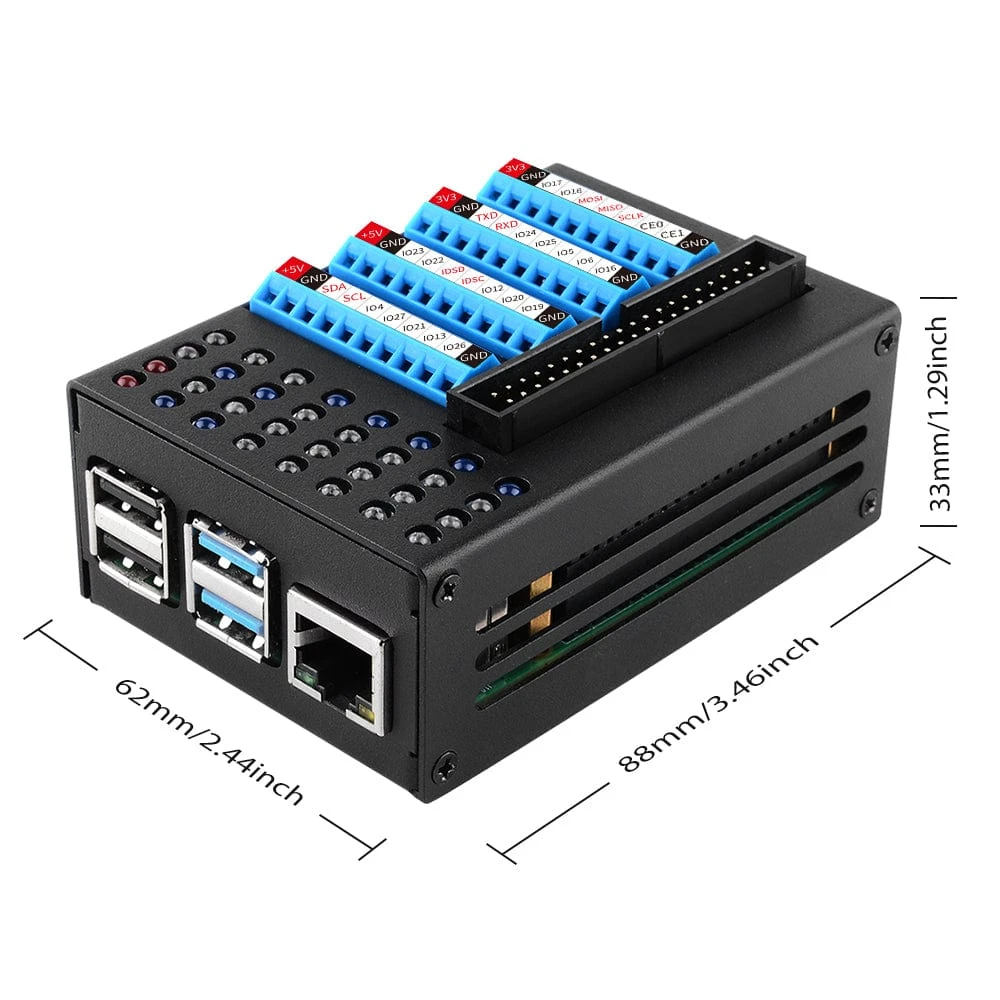

GPIO Terminal Board With LED Indicators + Aluminium Case For Pi 4

This is a GPIO terminal board and aluminium case combo for your

Raspberry Pi 4

.

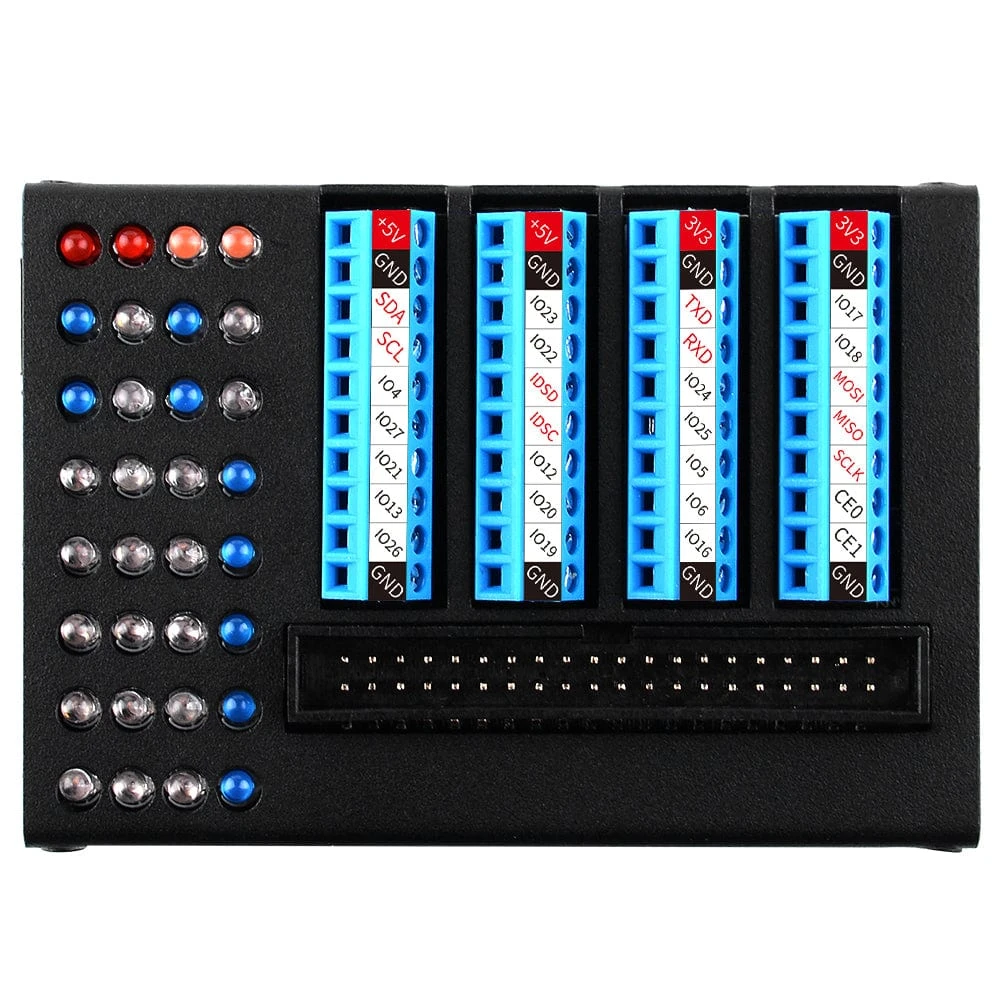

The included add-on board offers secure, well-labelled screw terminal connections for your Raspberry Pi’s GPIO pins, whilst also providing colour-coded LED indication of the GPIO status (including 3.3V, 5V and GPIO).

You’ll also find a dedicated 40-pin socket for connecting a GPIO ribbon cable (or just

jumper wires

), allowing you to break out the GPIO to a breadboard or similar. Underneath the board is a 3-pin header for connecting a 2 or 3-pin fan if required (5V/GND/GPIO18).

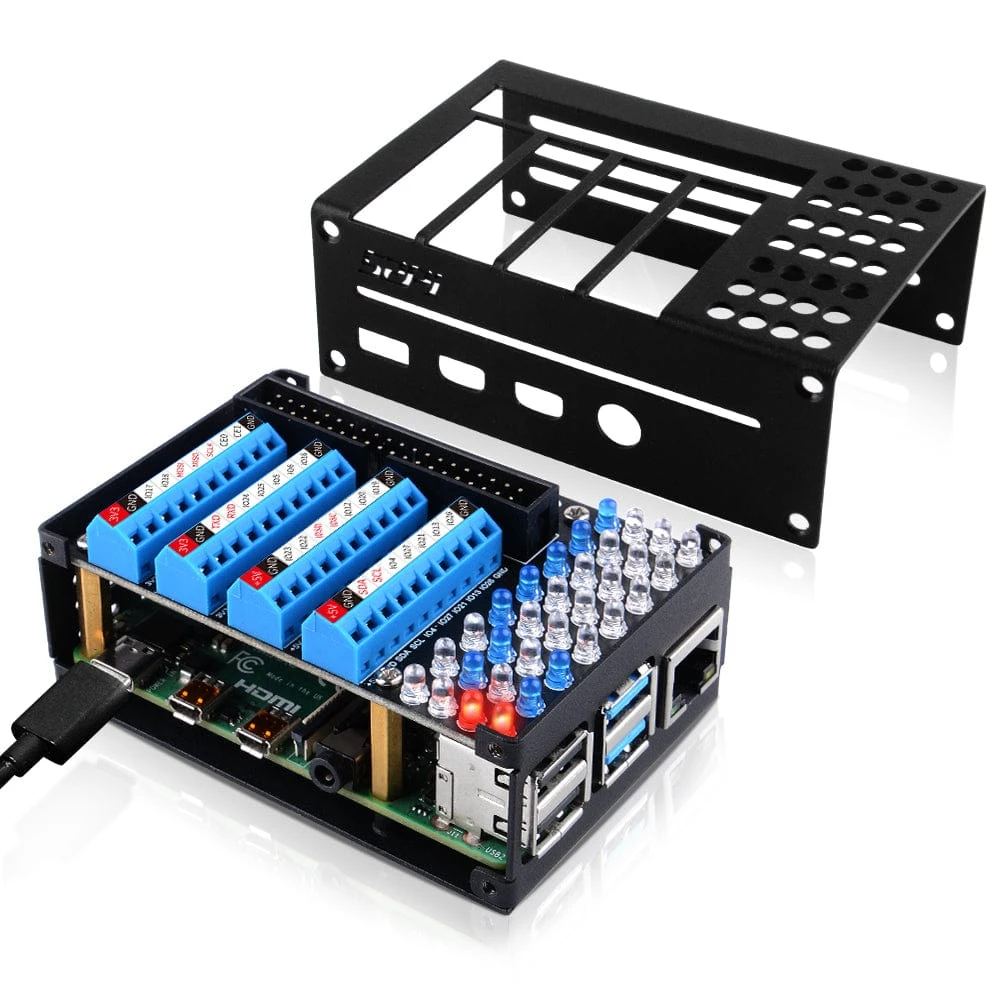

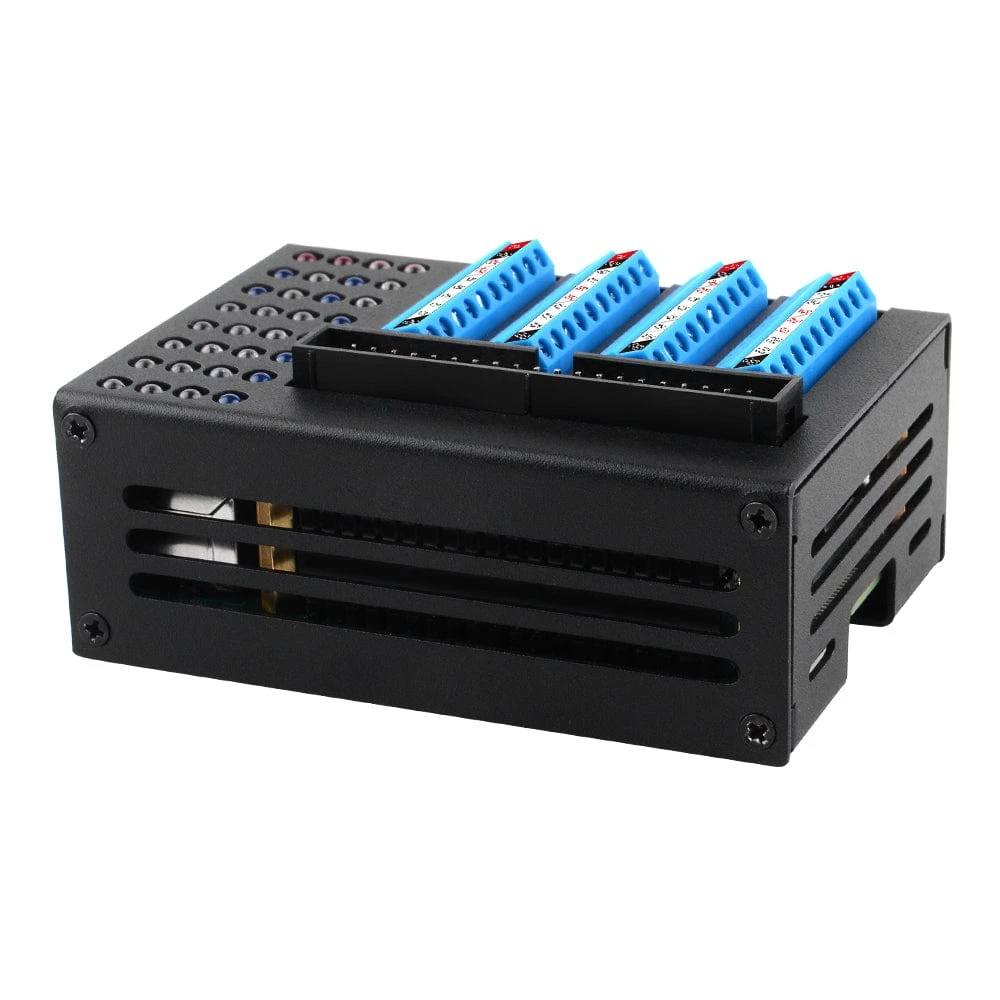

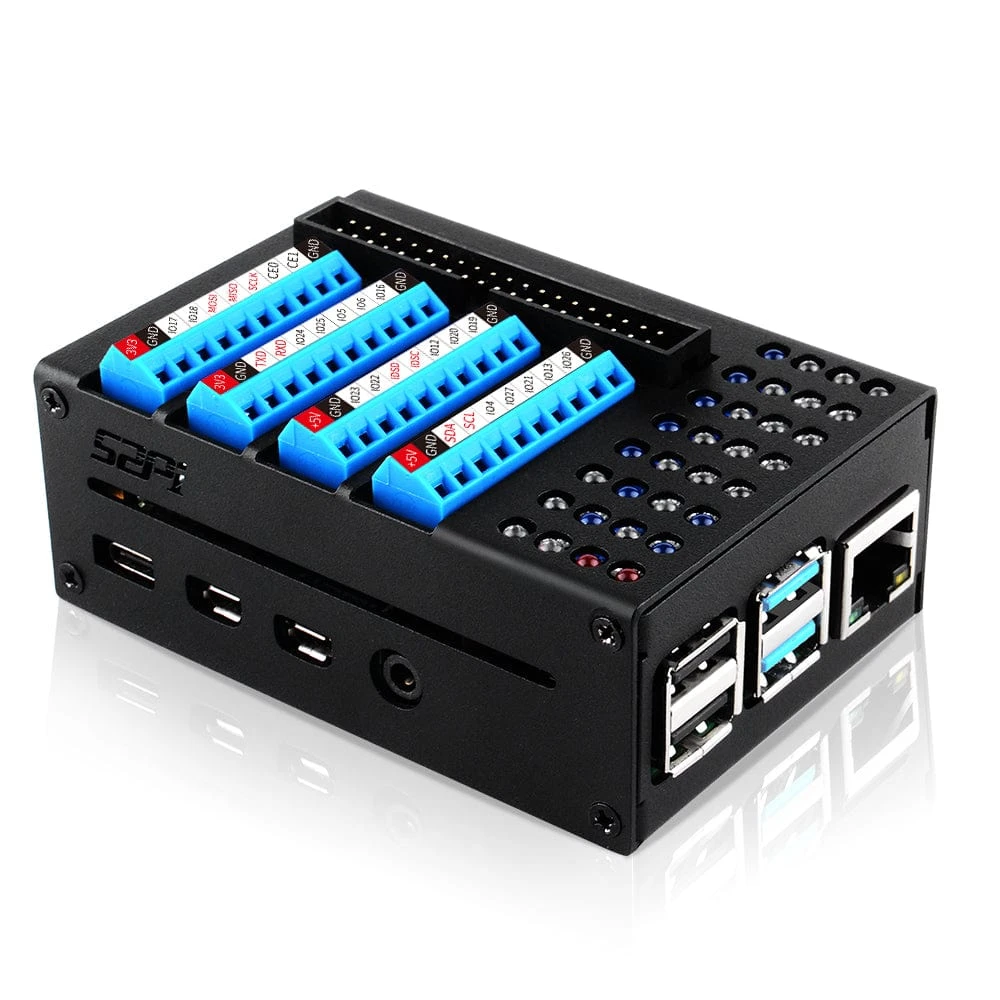

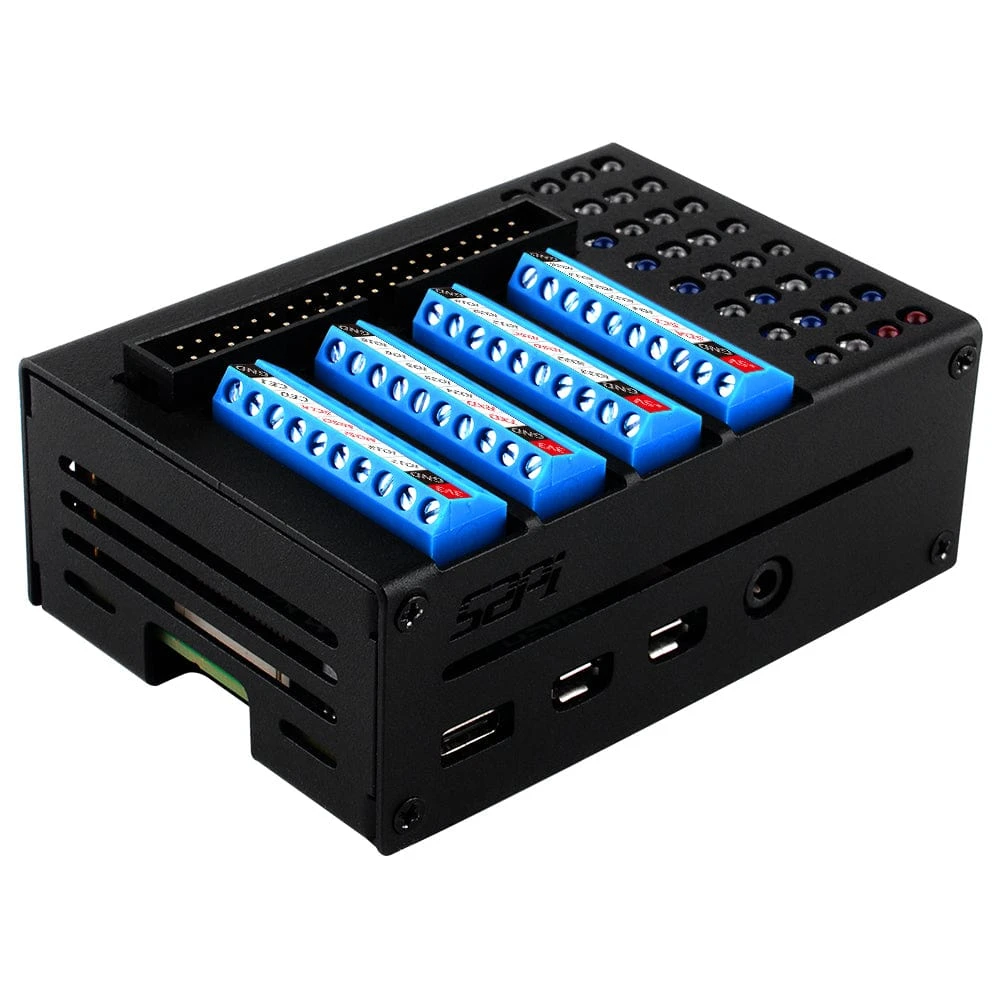

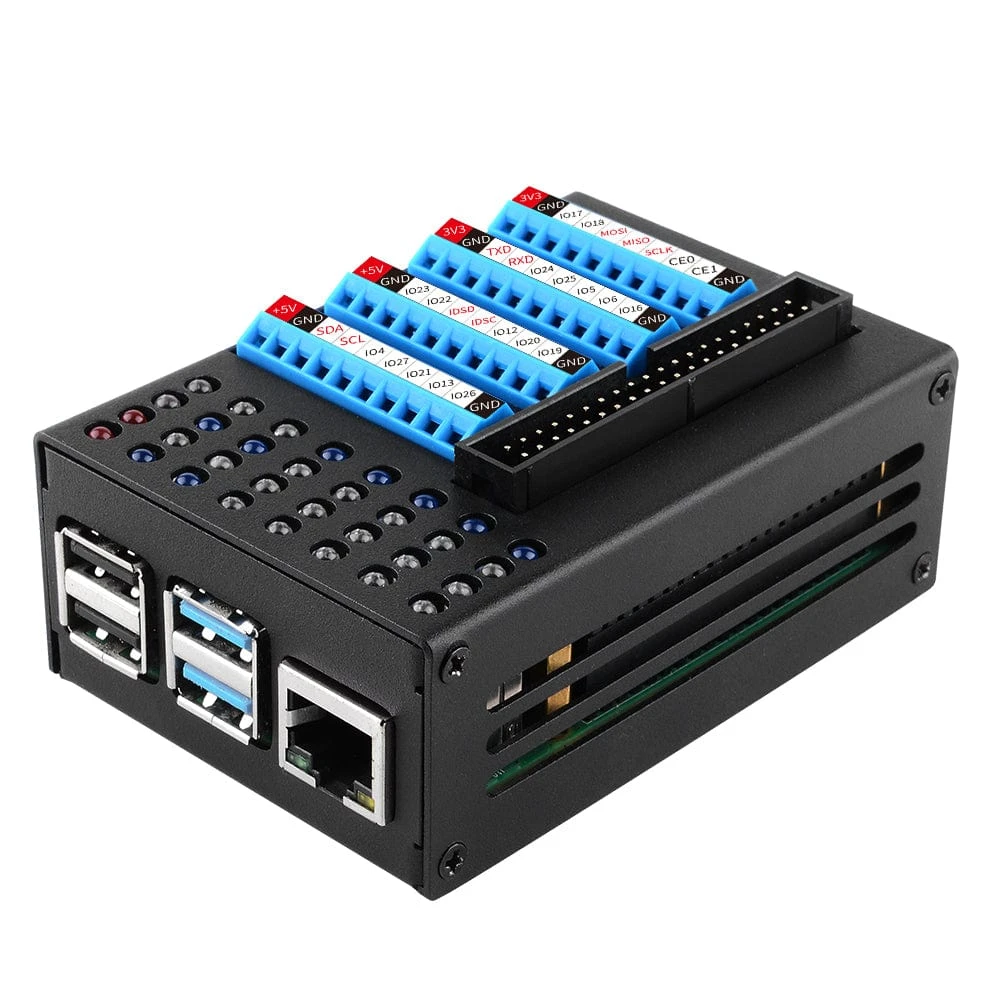

The included well-ventilated aluminium case has been custom-made for the add-on board, giving access to all ports, terminal blocks and LEDs whilst offering excellent protection for both your Raspberry Pi and the terminal block board.

The package also includes a set of heatsinks for your Pi 4, along with fixings and a handy screwdriver.

Some assembly is required. Raspberry Pi not included.

Features

• Compatible with Raspberry Pi 4 only
• Add-on board and Aluminium case combo
• Terminal blocks for GPIO connections

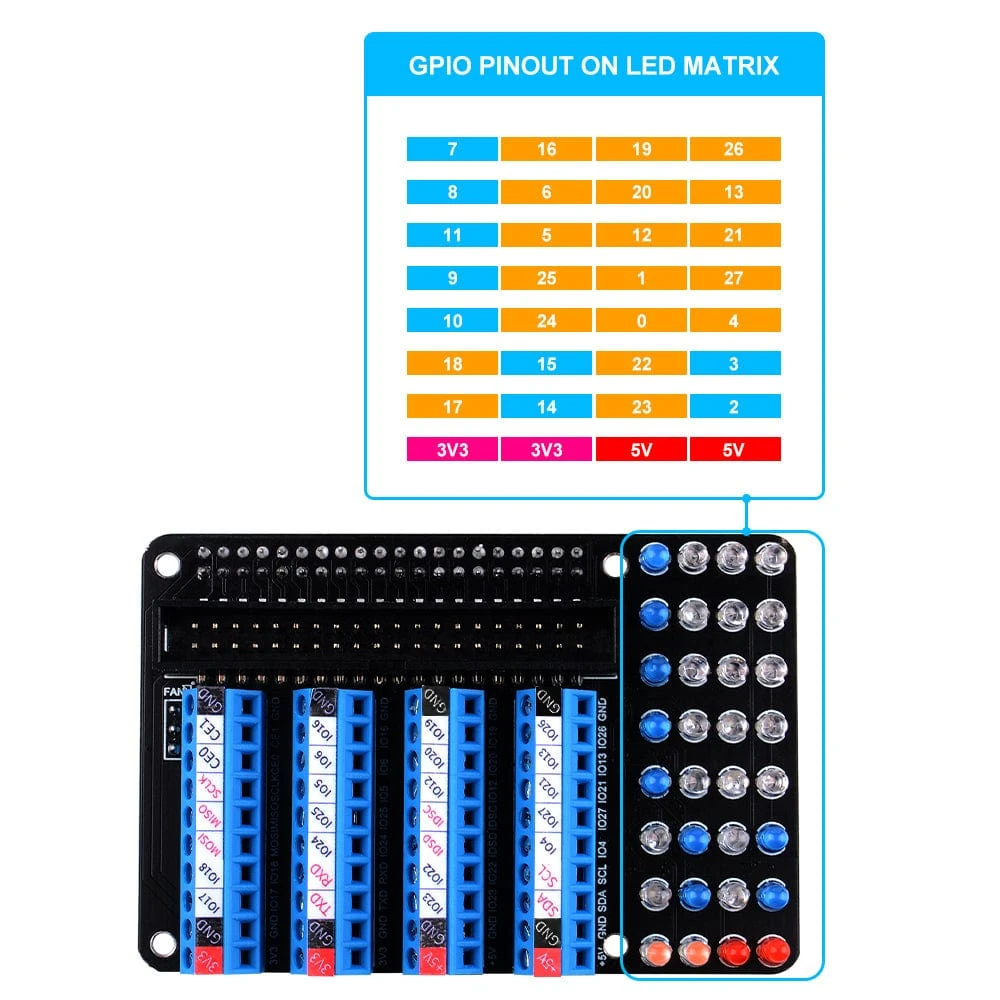

• Colour-coded LED indicators for GPIOs
• 40-pin socket for ribbon cables or jumper wires
• Aluminium case
• 3-pin header (underside of the board) for a 2 or 3-pin fan (GPIO 18)
• Heatsinks included

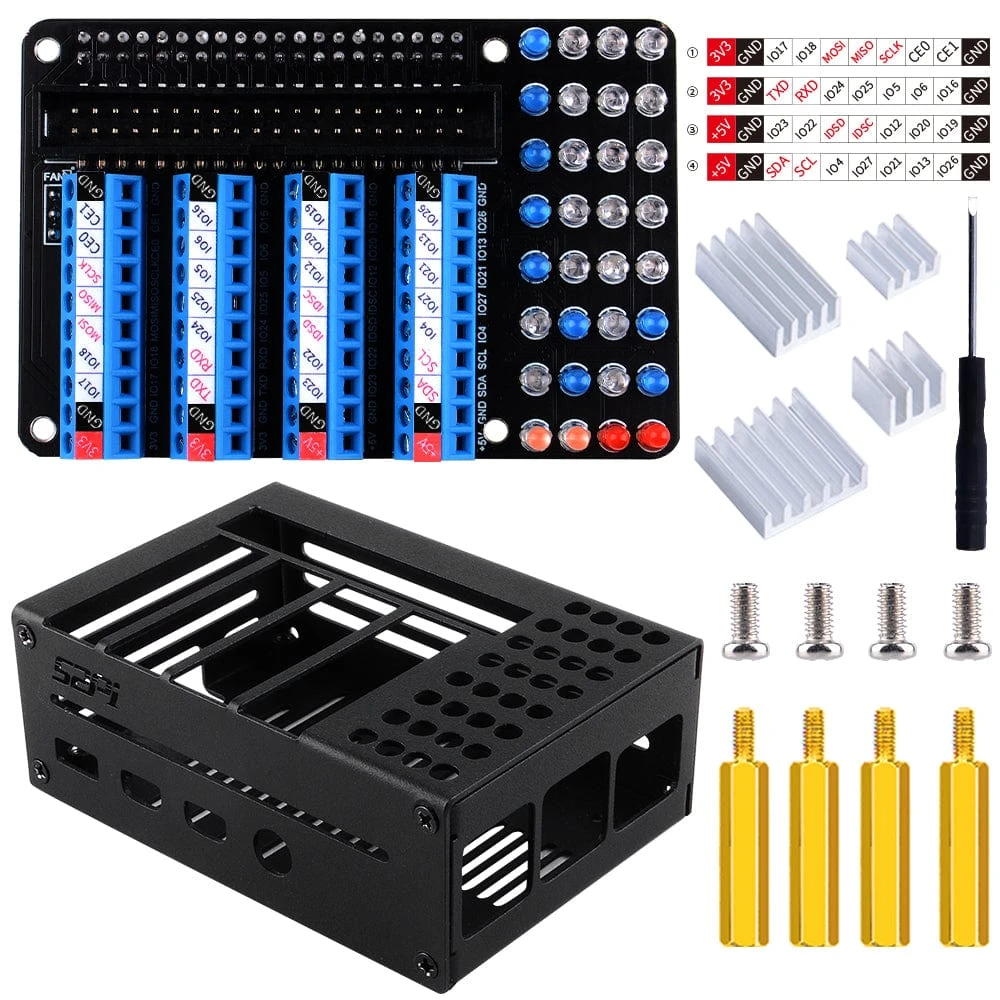

Package Contents

• 1 x Metal Case
• 1 x Terminal expansion board with LED indicators
• 1 x Screw Driver
• 1 x Terminal Pinout Sticker
• 4 x M2.5×19+6 Copper Pillar
• 5 x M2.5×6 screw
• 4 x Aluminum Heatsink

Raspberry Pi not included

Resources

• Product Wiki
