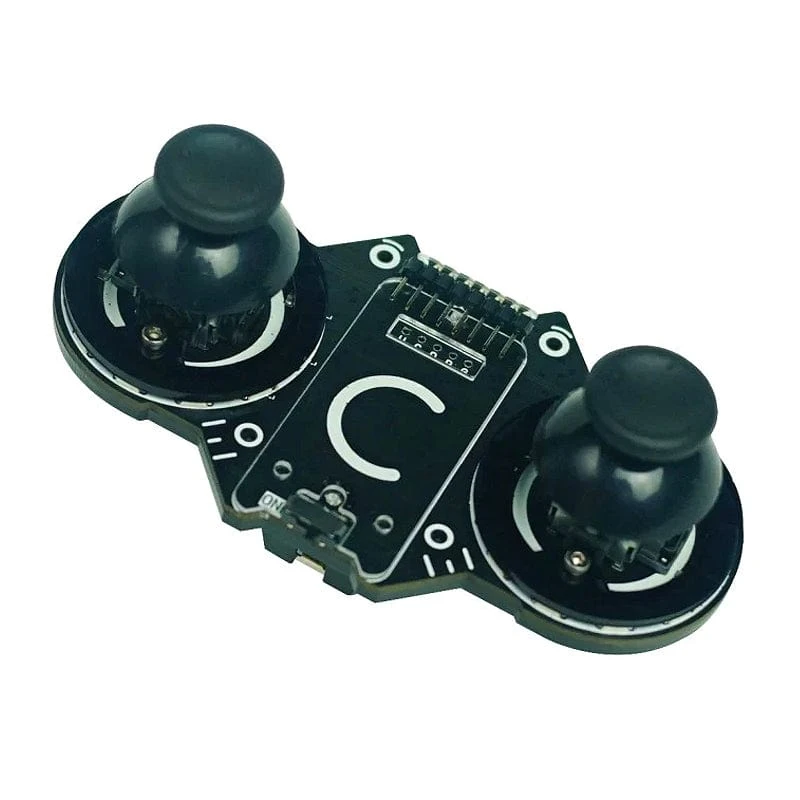

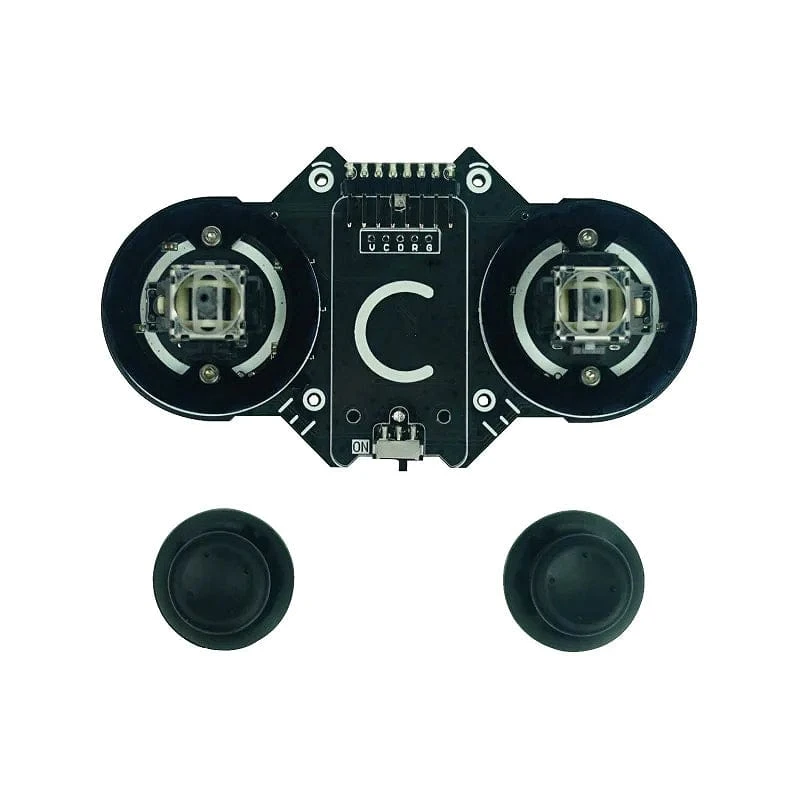

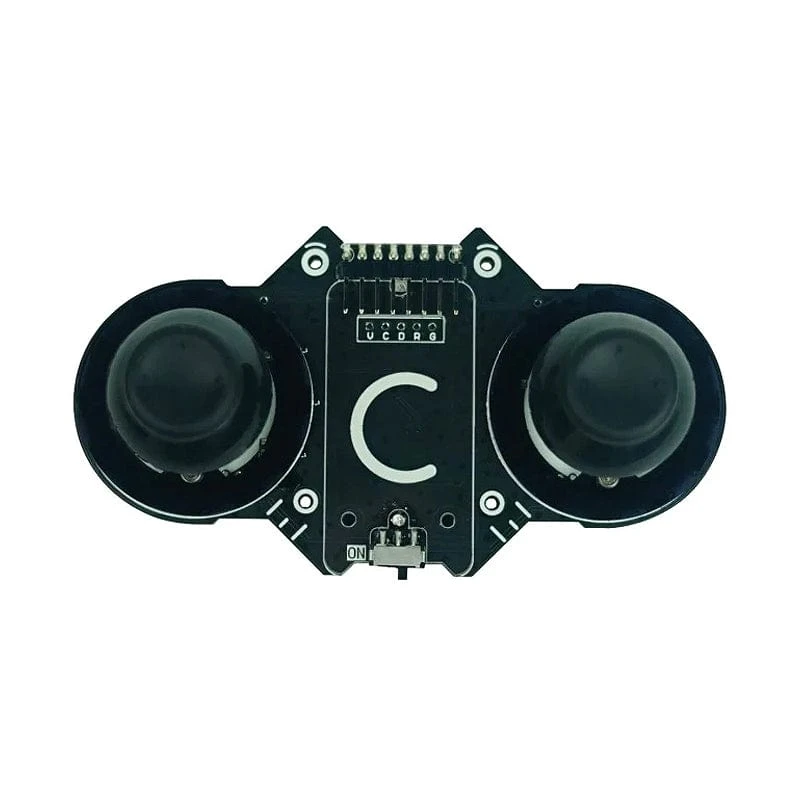

JoyC Omni-directional Controller (Without M5StickC)

The JoyC is a rocker module designed for the M5StickC. It supports the two-hand operation and there is an embedded STM32F030F4 main control chip, using I2C communication protocol and host M5StickC for data transmission.

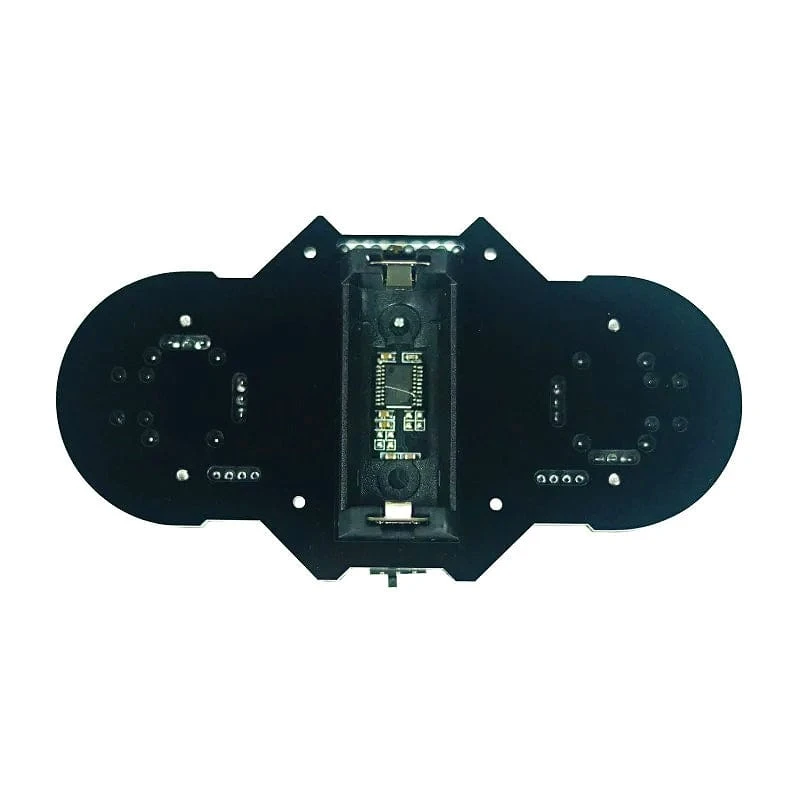

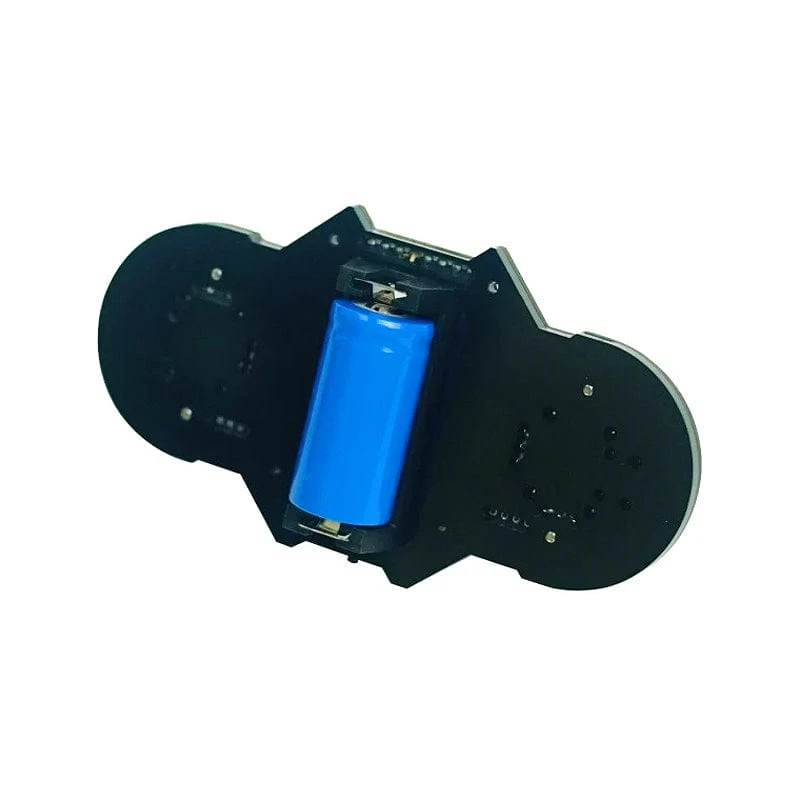

The range of the joystick is 0~200, there are 12 RGB LEDs under the left and right joysticks, and the bottom of the joystick is equipped with a 16340 battery base for continuous battery life.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

• STM32F030F4 inside
• Communication protocol: I2C (address: 0x38)
• Support omnidirectional movement/button press

Specifications

Resources	Parameter
Communication protocol	I2C:0x38
Net weight	81g
Gross weight	117g
Product Size	200x55x50mm
Package Size	119x89x65mm

Resources

• Product Wiki

Package Contents

• 1x JoyC
• 1x 16340 700mAh Battery
