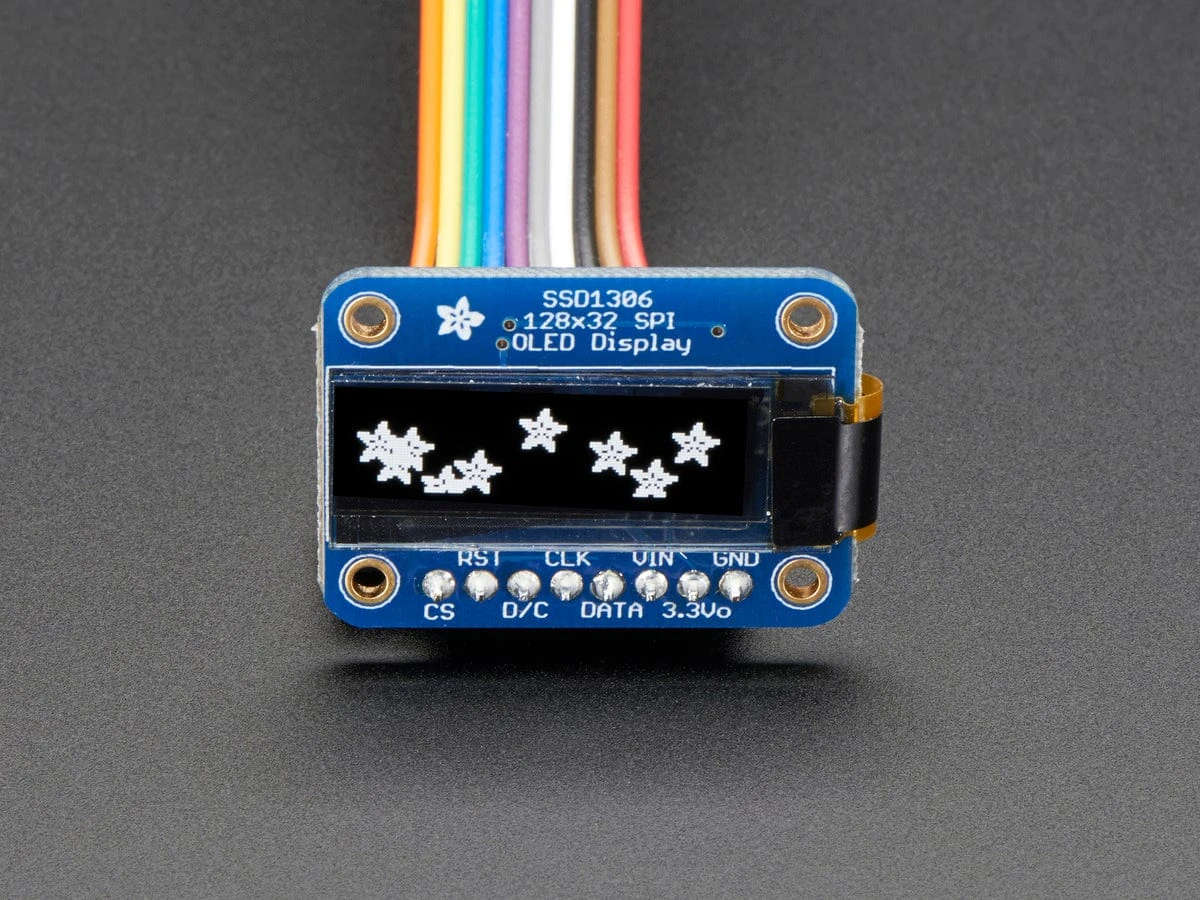

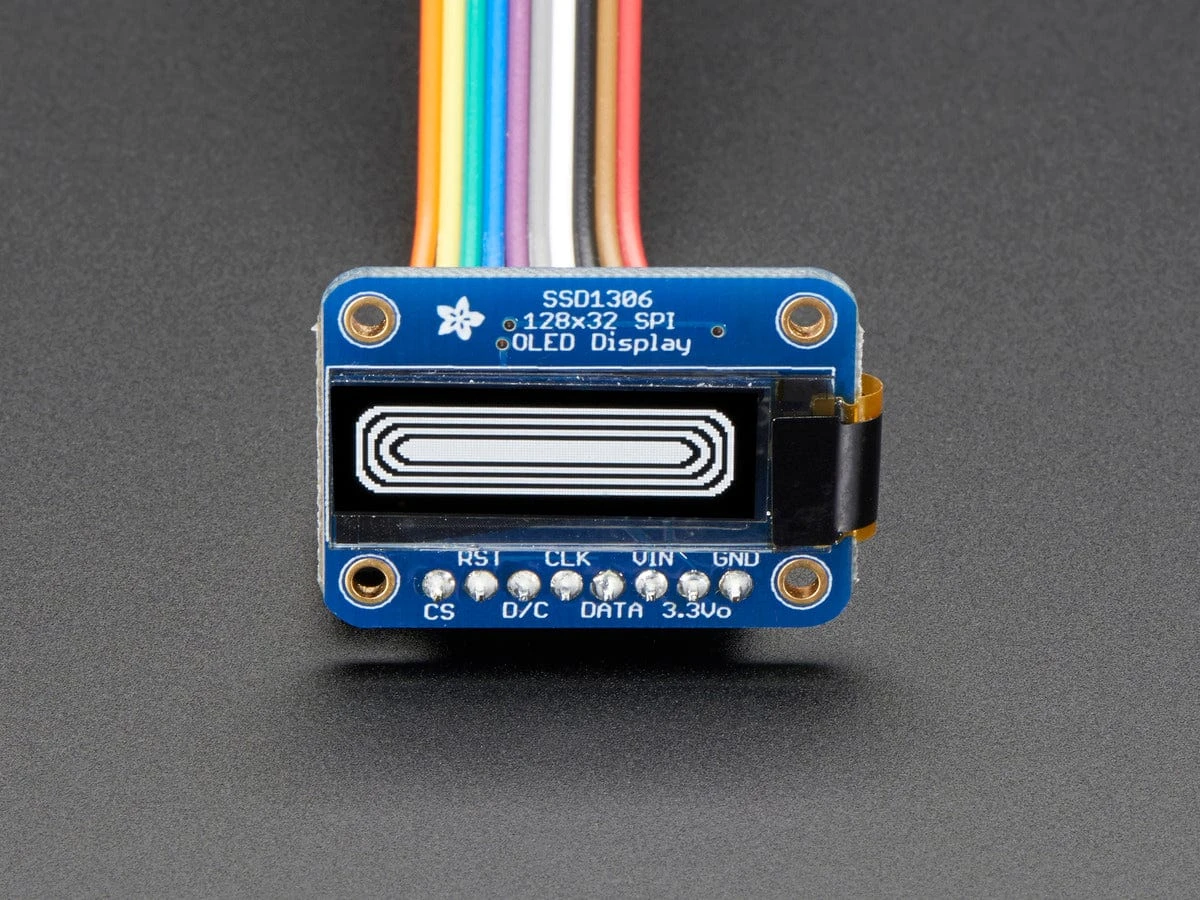

These displays are small, only about 1″ diagonal, but very readable due to the high contrast of an OLED display. This display is made of 128×32 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness!

The driver chip SSD1306, communicates via SPI only. 4 or 5 pins are required to communicate with the chip in the OLED display.

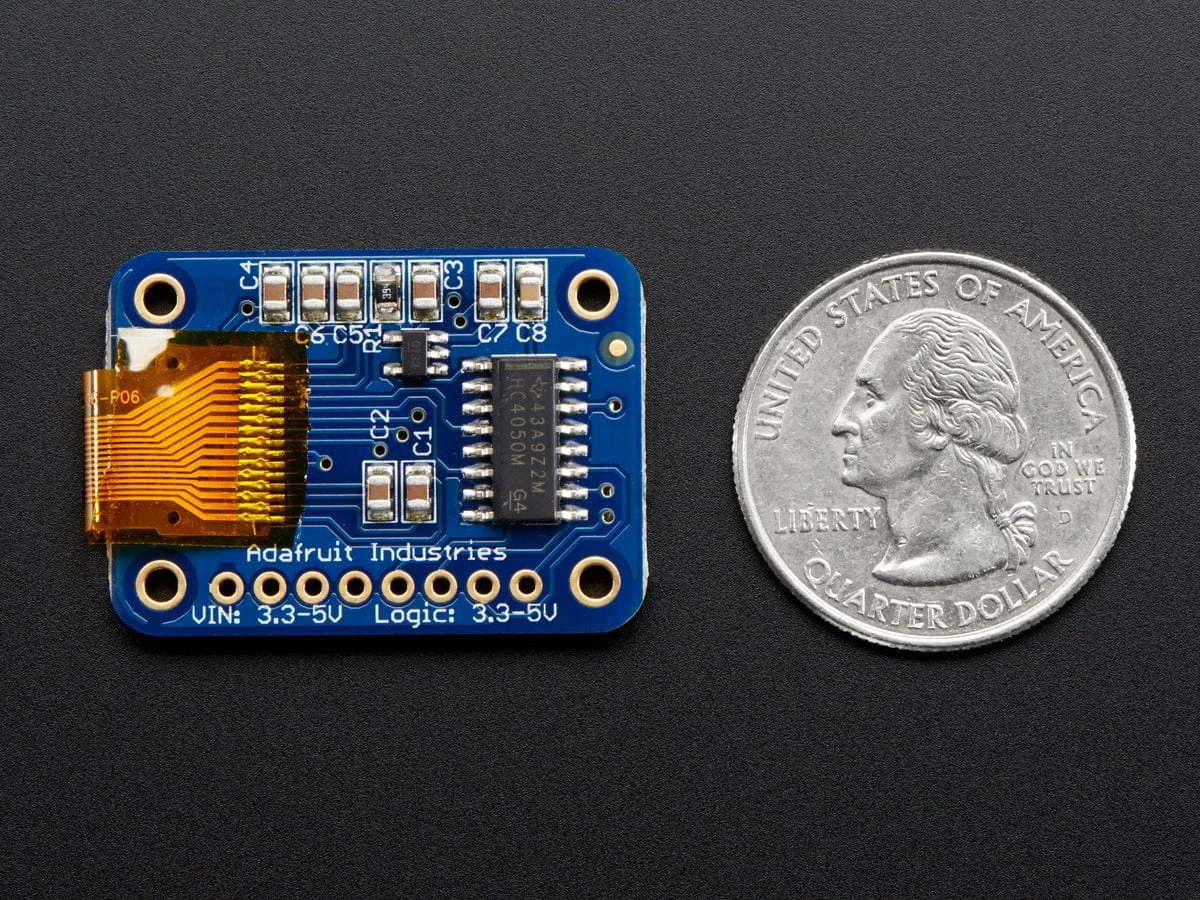

The OLED and driver require a 3.3V power supply and 3.3V logic levels for communication. To make it easier for our customers to use, we’ve added a 3.3v regulator and level shifter on board! This makes it compatible with any 5V microcontroller, such as the Arduino.

The power requirements depend a little on how much of the display is lit but on average the display uses about 20mA from the 3.3V supply. Built into the OLED driver is a simple switch-cap charge pump that turns 3.3v-5v into a high voltage drive for the OLEDs, making it one of the easiest ways to get an OLED into your project!

Of course, we wouldn’t leave you with a datasheet and a “good luck”:

We have a detailed tutorial

and

example code in the form of an Arduino library

for text and graphics. You’ll need a microcontroller with more than 512 bytes of RAM since the display must be buffered.

You can download our SSD1306 OLED display Arduino library from github

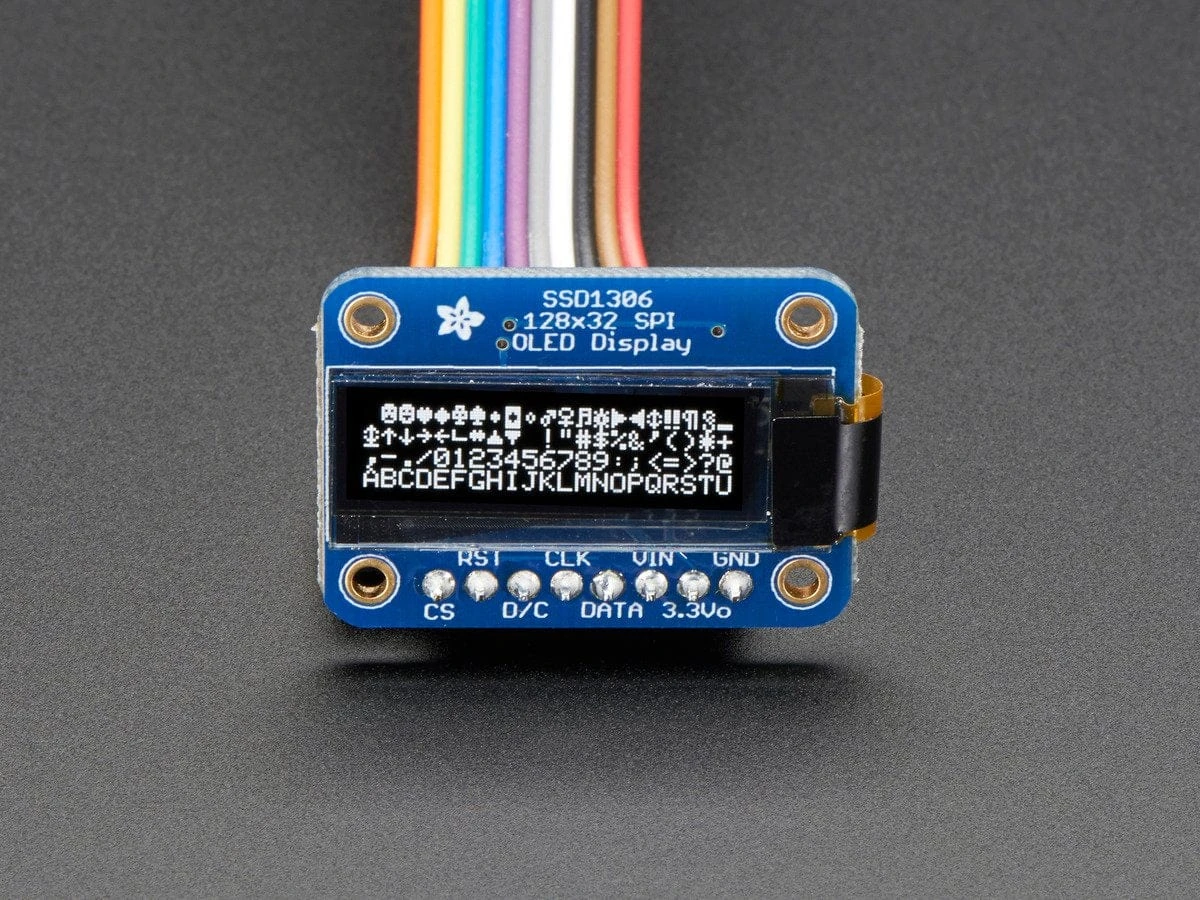

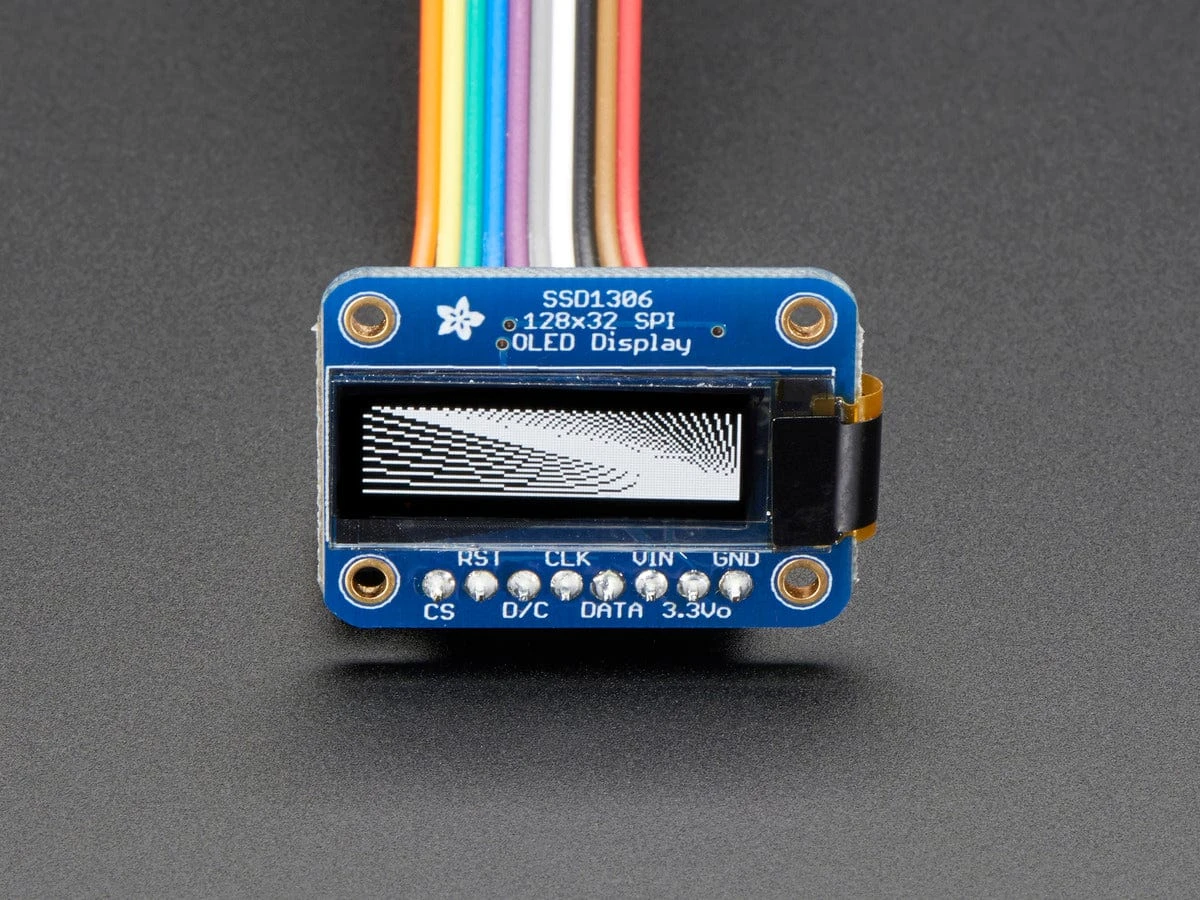

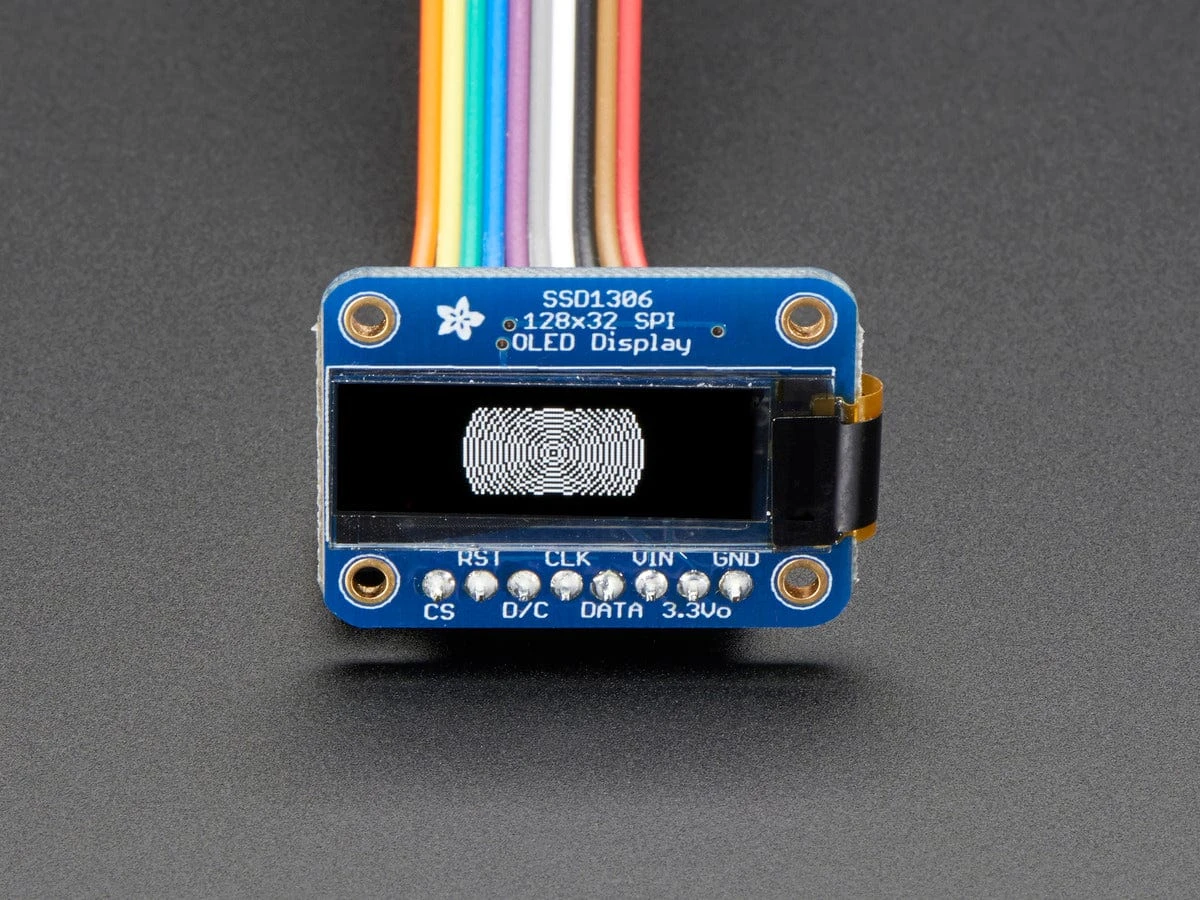

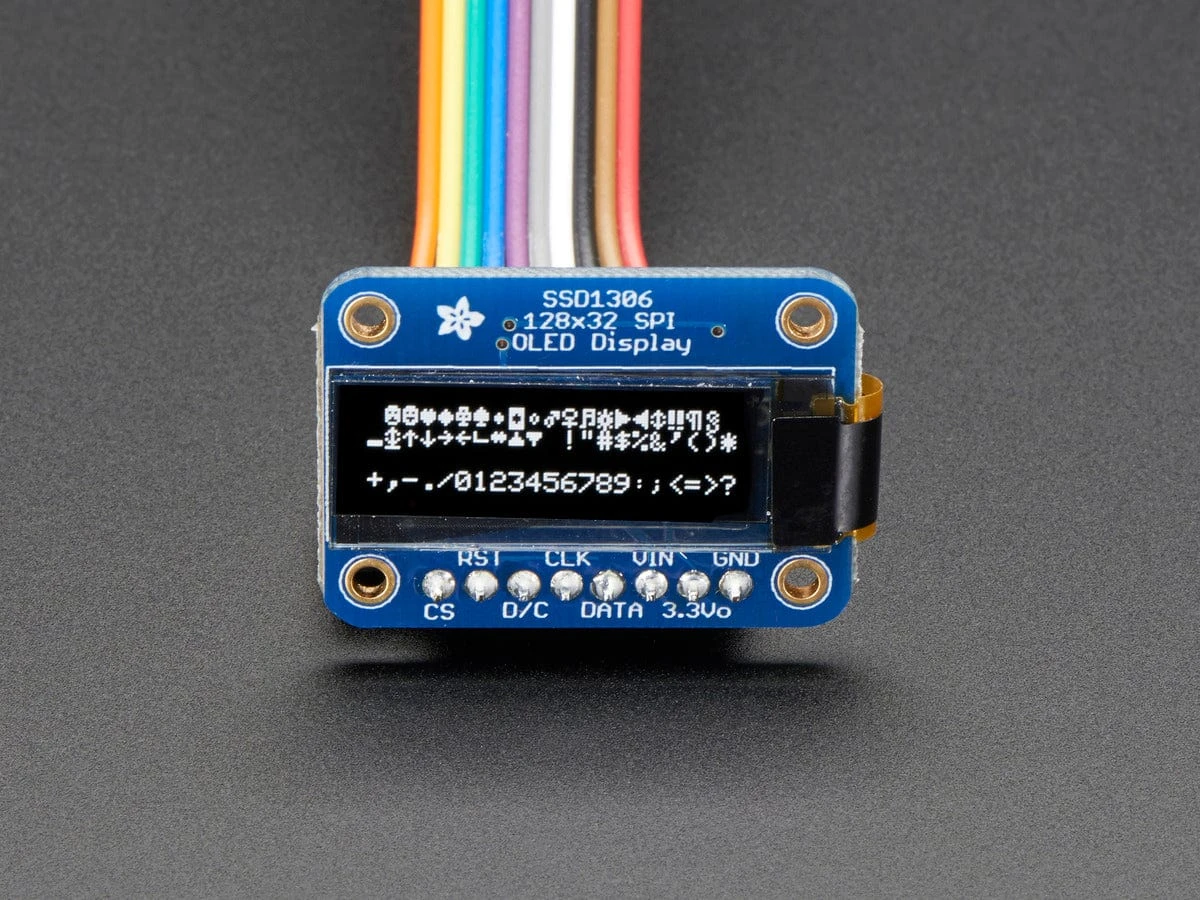

which comes with example code. The library can print text, bitmaps, pixels, rectangles, circles and lines. It uses 512 bytes of RAM since it needs to buffer the entire display but its very fast! The code is simple to adapt to any other microcontroller.

Please note that OLED displays are made of hundreds of…OLEDs! That means each pixel is a little organic LED, and if its kept on for over 1000 hours it’ll start to dim. If you want to keep the display uniformly bright, please turn off the display (set the pixels off) when it isn’t needed to keep them from dimming.

Technical Details

Datasheet, Fritzing, and EagleCAD PCB files available in product tutorial

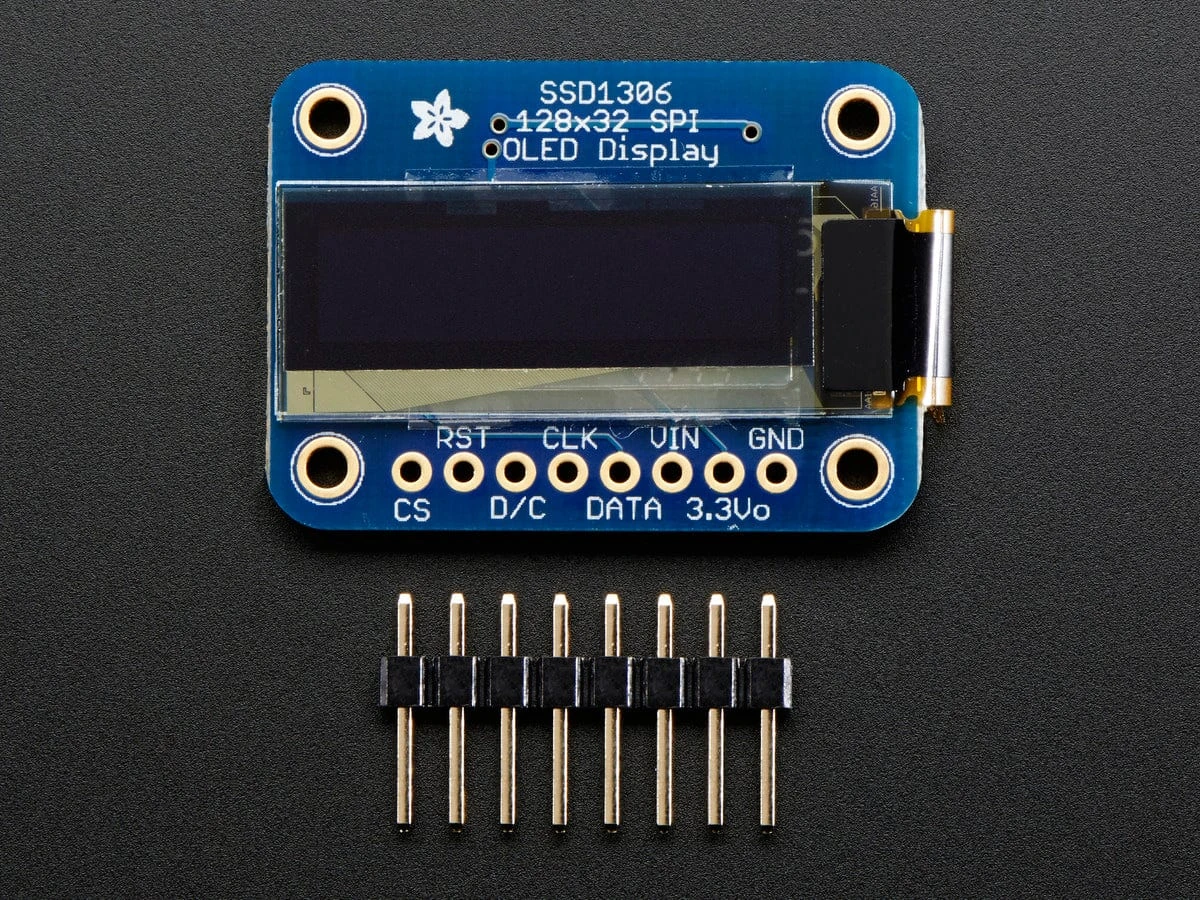

Dimensions:

PCB: 23mm x 33mm x 5mm / 0.9″ x 1.3″ x 0.2″
Mounting Holes Distance: 15mm x 24mm / 0.6″ x 0.9″
Mounting Hole Diameter: 2mm / 0.08″
Display area: 7mm x 25mm

Display details:

Diagonal Screen Size：0.91″
Number of Pixels：128 × 32
Color Depth：Monochrome (White)
Module Construction：COG
Module Size (mm)：46.30× 11.50 × 1.45
Panel Size (mm)：30.00 × 11.50 × 1.45
Active Area (mm)：22.384 × 5.584
Pixel Pitch (mm)：0.175 × 0.175
Pixel Size (mm)：0.159 × 0.159
Duty：1/32
Brightness ( cd/m2)：150 (Typ) @ 7.25V
Interface：4-wire SPI
Display current draw is completely dependent on your usage: each OLED LED draws current when on so the more pixels you have lit, the more current is used. They tend to draw ~15mA or so in practice but for precise numbers you must measure the current in your usage circuit.
