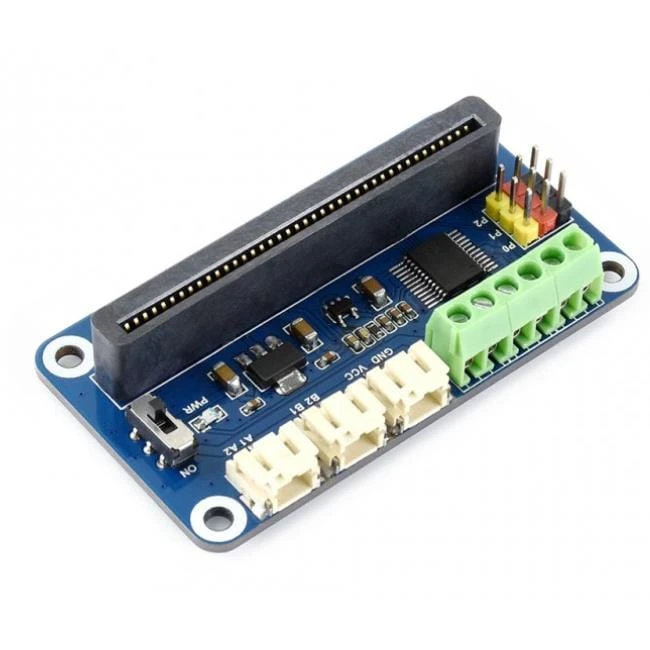

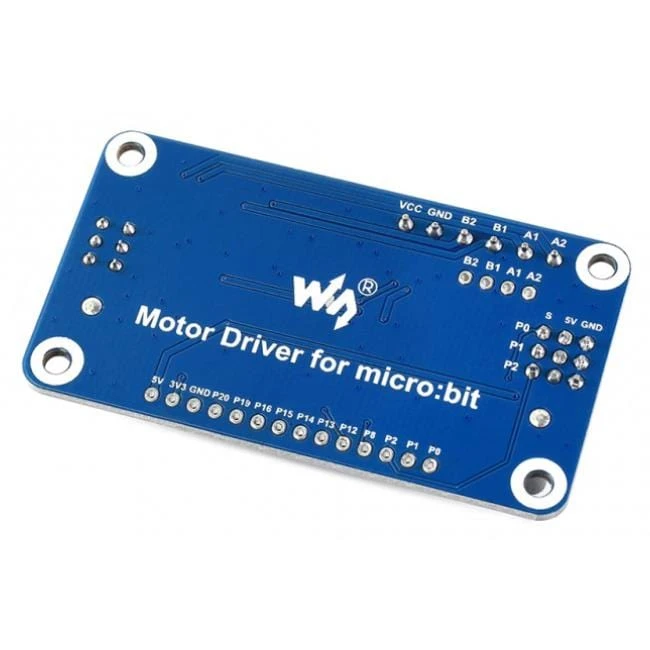

Motor & Servo Driver For Micro:bit

This driver board gives your

micro:bit

(not included) the ability to drive two channel DC motors and three servos. It’s a great choice for making a versatile and adaptable micro:bit robot.

It features an integrated 5v regulator (up to 3A) allowing your project to be powered by a battery (6-12V) by connecting it to the VIN terminal block.

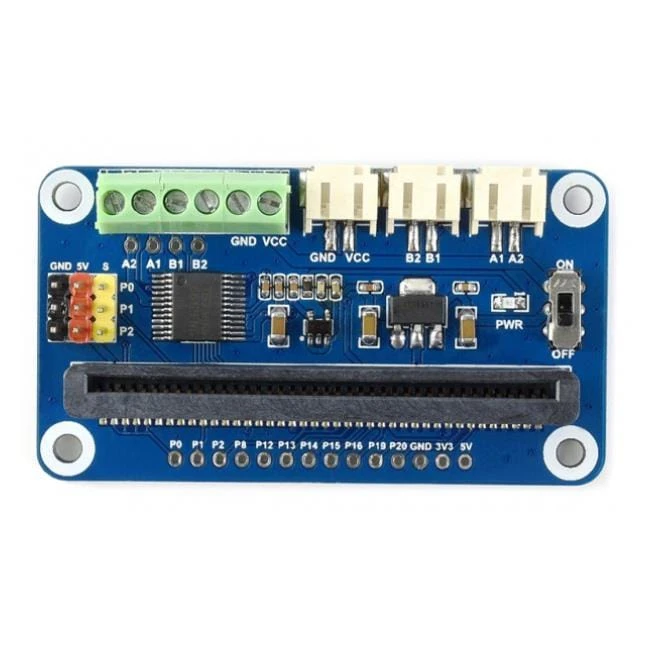

The board also features terminal blocks for motor connections, standard servo connections and a power switch.

The onboard motor driver can control two motors at a constant current of 1.2A (3.2A peak).

Features

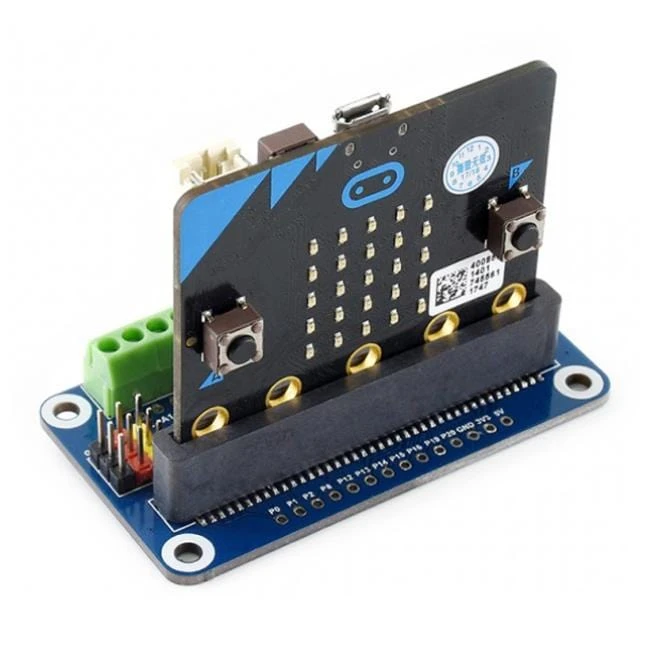

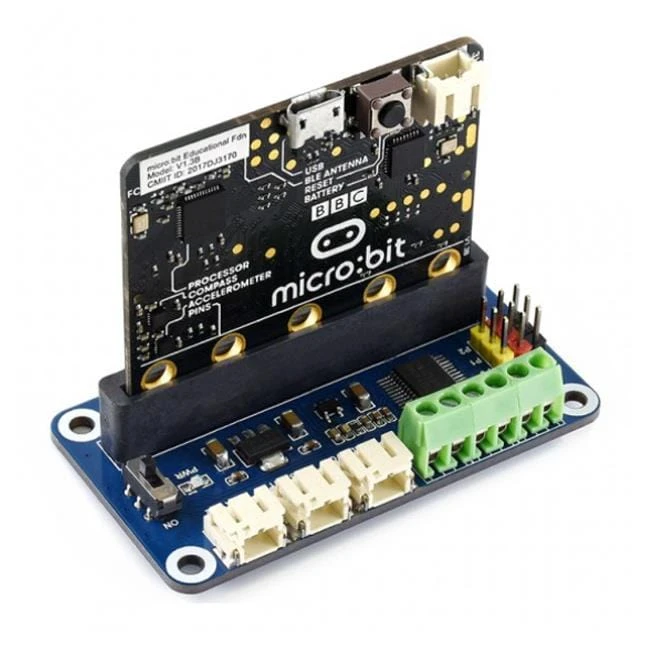

• micro:bit edge connector, directly pluggable
• 2x DC motor interfaces
• 3x servo interfaces
• Integrated 5V regulator with up to 3A output current
• Can be powered from a battery through the VIN terminal
• Power switch
• Onboard multi-connector options for DC motors in different specifications
• Standard servo headers
• JST-PH connectors
• Comes with development resources and manual (micro:bit graphical examples)

Resources

• Product Wiki and user guide

• TB6612FNG Motor Driver datasheet

Tech Spec

• Power supply: 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: TB6612FNG
• Dimension: 65mm x 36mm
• Mounting hole size: 3.0mm
