Two Key Black Aluminum Keypad Shell Enclosure (MX Compatible Switches)
Original price was: $12.42.$8.69Current price is: $8.69.
- Friendly, efficient service, always online.
- Fast reliable delivery options
- Quality products, fair prices.
- Shop with confidence, enjoy free returns.

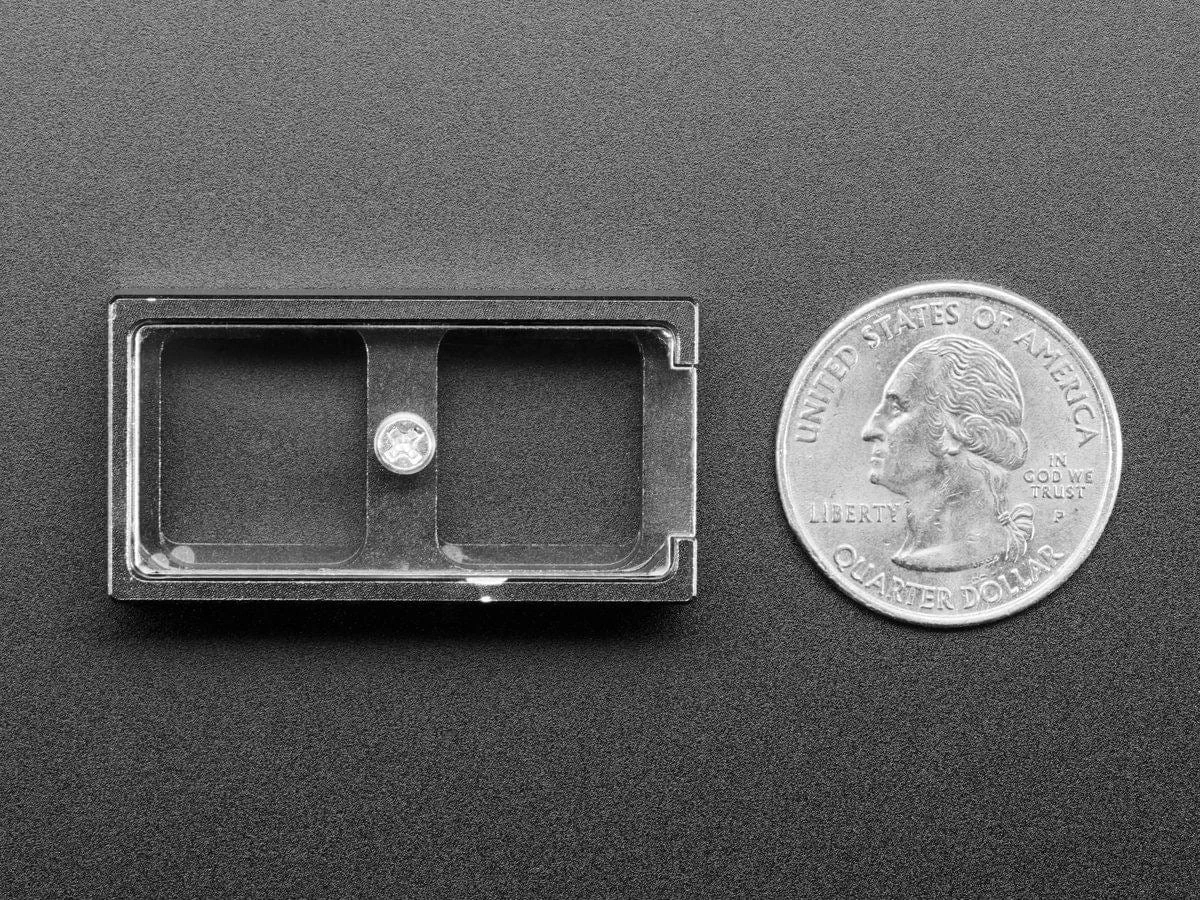

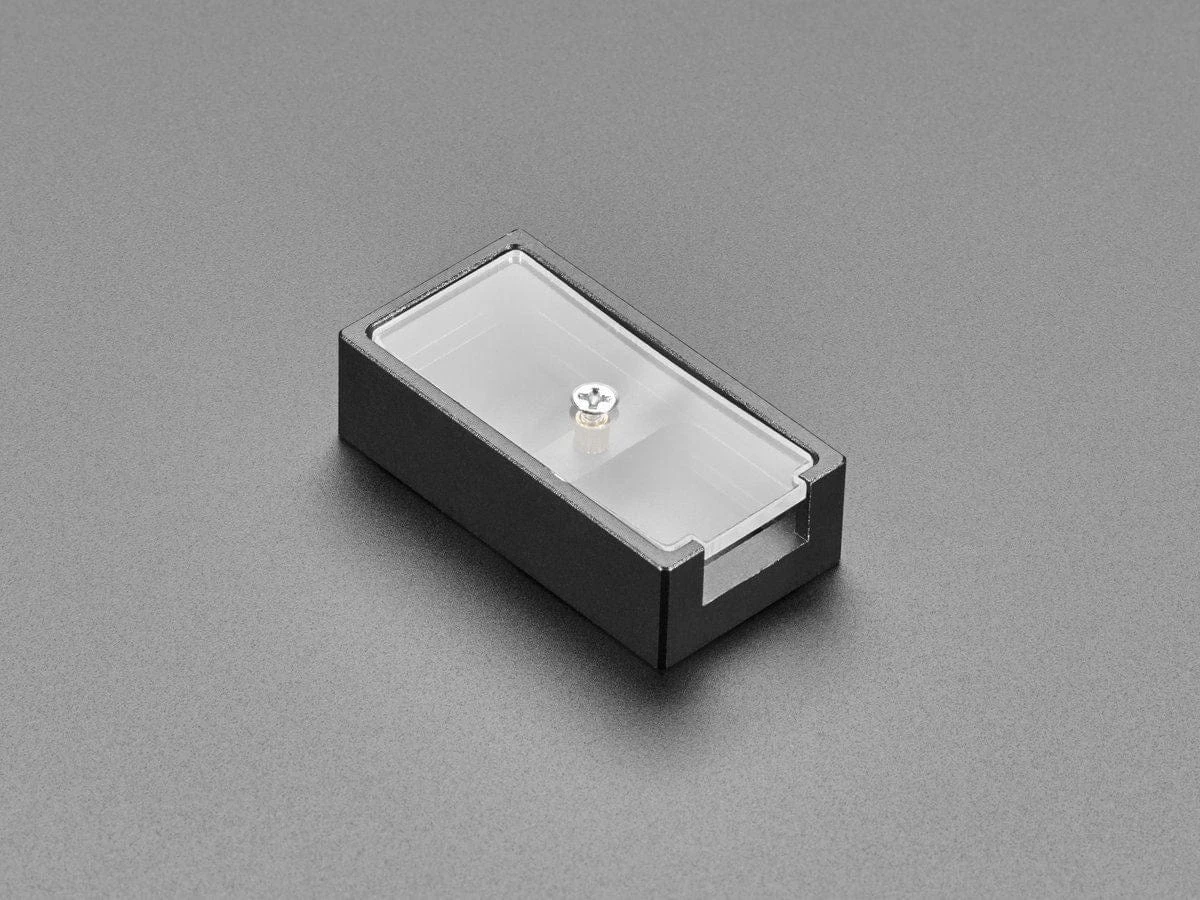

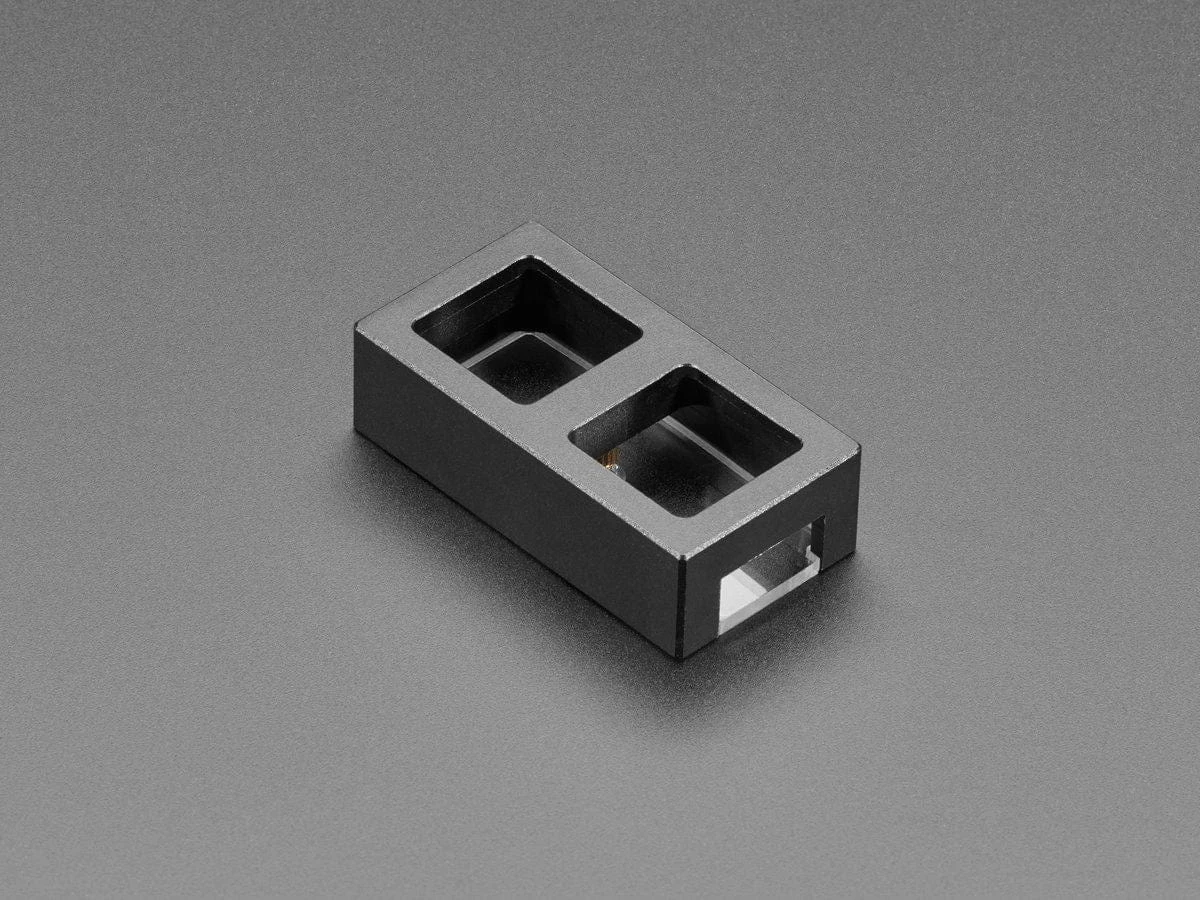

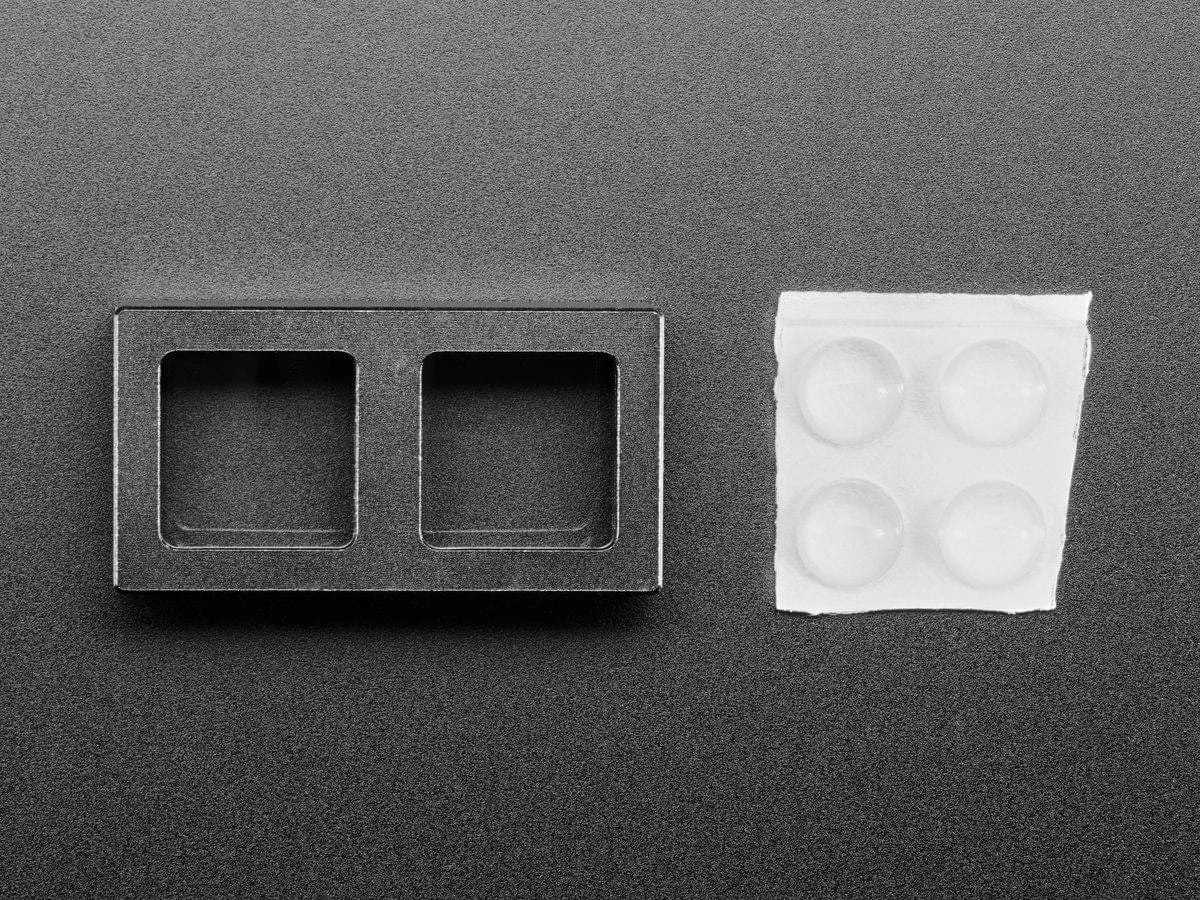

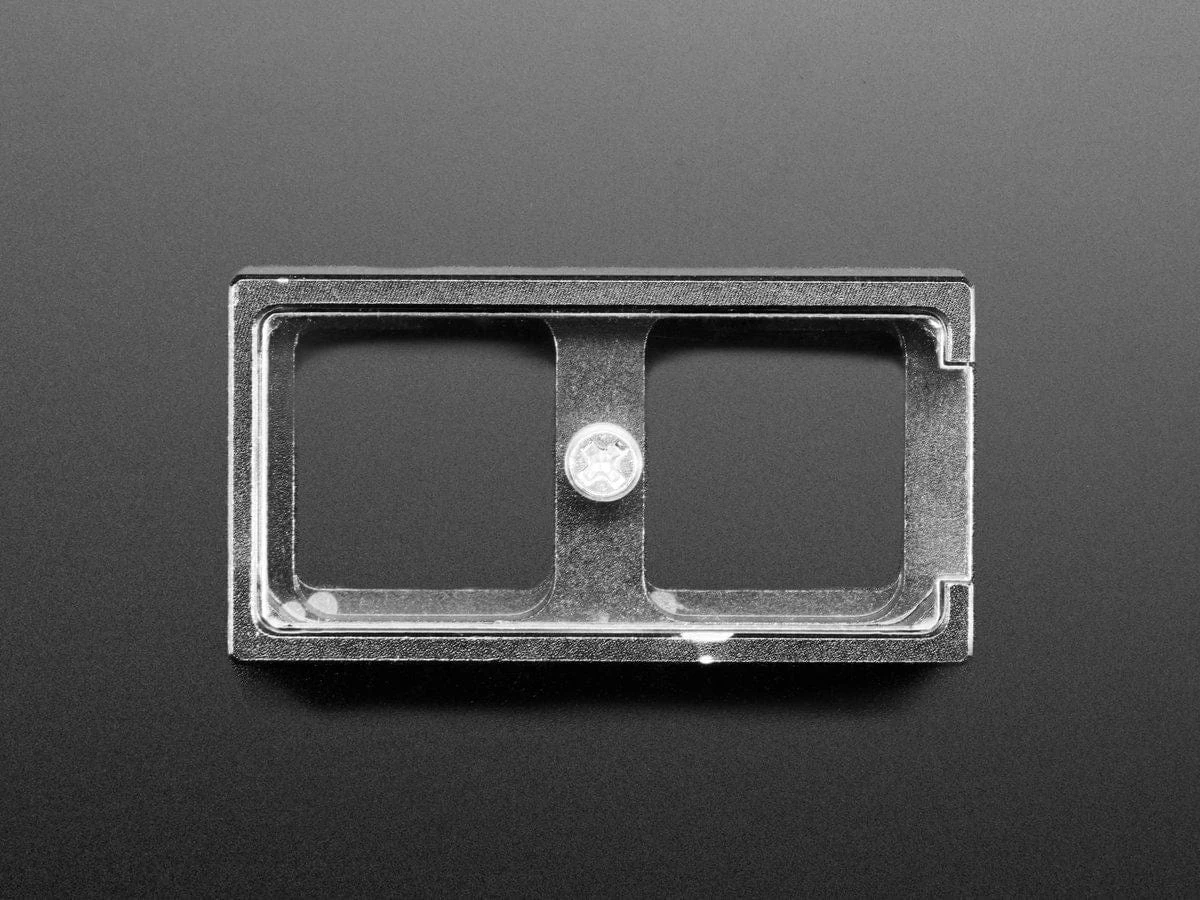

For all the DIY keebfans in the house here is a super sleek and sturdy 2-Key Aluminum Keypad Shell in Black, the perfect base to begin your custom keypad project. You provide the PCB in the housing and bolt it into this base. Makes for a prettier build with more protection than just layers of PCB or acrylic. While it’s designed for a custom PCB, you could also just snap in 2 keys and ‘free wire’ them. Comes with one anodized black aluminum enclosure and a clear acrylic bottom that screws on with one bolt.
Designed for use with any “Cherry MX” keyswitches or compatibles, like Kailh or Gateron.
Note: This is the keypad shell ONLY. Don’t forget to grab some keycaps and switches.
Specifications
- Product Dimensions: 40.0mm x 21.0mm x 11.5mm / 1.6″ x 0.8″ x 0.5″
Product Specs
- Keyholes: 14mm x 14mm
- Key spacing: 19mm
- Screw size: M2
- Screw length: 4mm
Inner dimensions for pcb:
- Length: 37mm
- Width: 17.5mm
- Height: 5mm
- Screw receptacle diameter: 3mm
- Screw receptacle height: 3mm
- Distance from screw receptacle center to end (length): 18.5mm
- Distance from screw receptacle center to end (width): 8mm
End connector dimensions:
- Outer length: 12mm
- Outer height: 5mm
- Inner width: 3.5mm
