XBoard V2

Original price was: $15.92.Current price is: $11.14.

Friendly, efficient service, always online.

Fast reliable delivery options

Quality products, fair prices.

Shop with confidence, enjoy free returns.

This is Version 2.0 of the Xboard. The main improvement is that it now operates at 5V, making it compatible with most sensors and I2C protocol without the need of a voltage level converter.

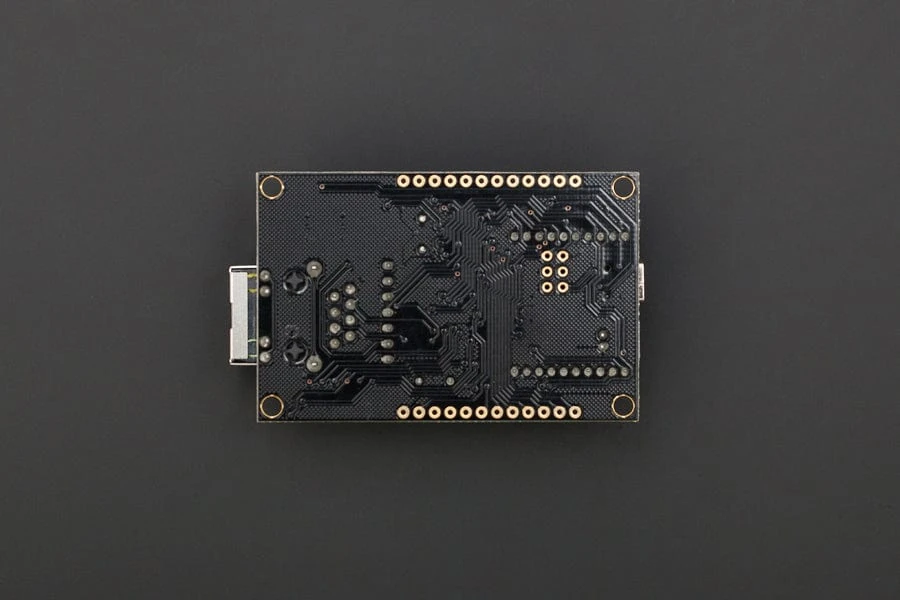

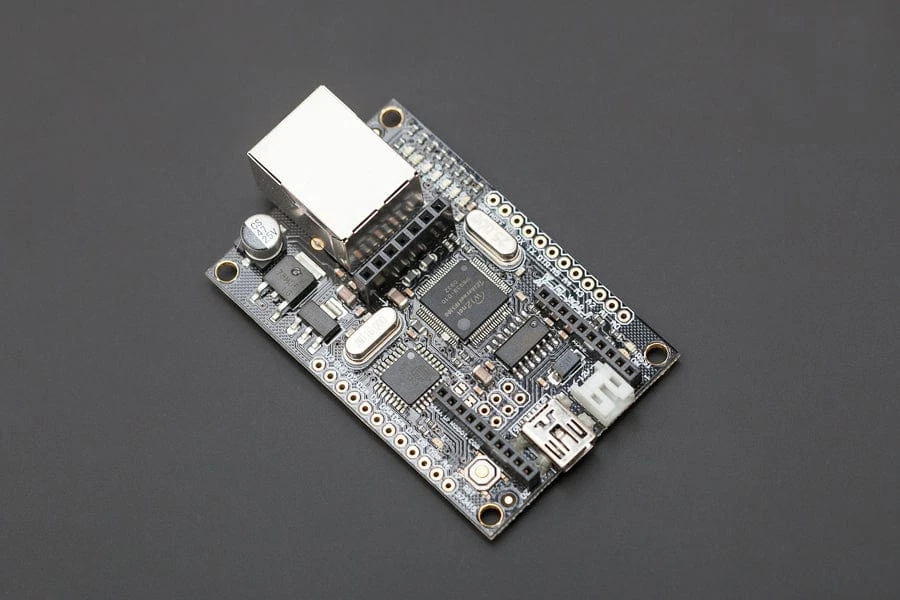

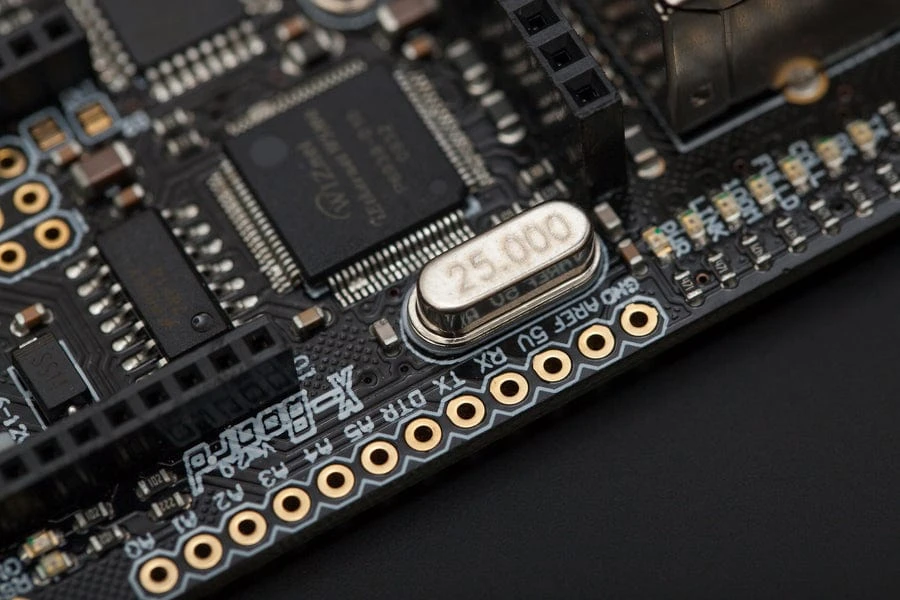

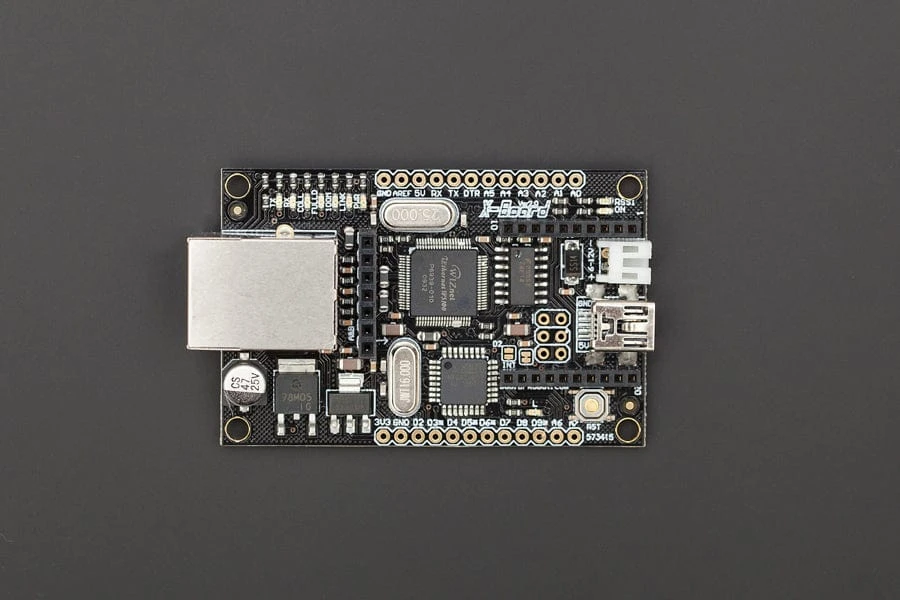

The XBoard is a unique Arduino compatible board which features a WIZnet ethernet port, an XBee socket, and an ATMega328. This board will add wireless XBee control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

It has 8 Analog I/O pins and 8 digital pins, 4 of which have PWM (indicated by an asterisk). It is compatible with all XBee modules, and also comes with an integrated socket for APC220 RF Module or DF-Bluetooth Module. The XBoard can be programmed via an FTDI programmer or via the ICSP header. Power is provided through a Mini USB connector. You can setup a web server through which you may communicate with a remote Arduino Boards and their compatibles using XBee radios, Bluetooth or APC modules. This information can be posted to a web site, Twitter or other services.

Specification

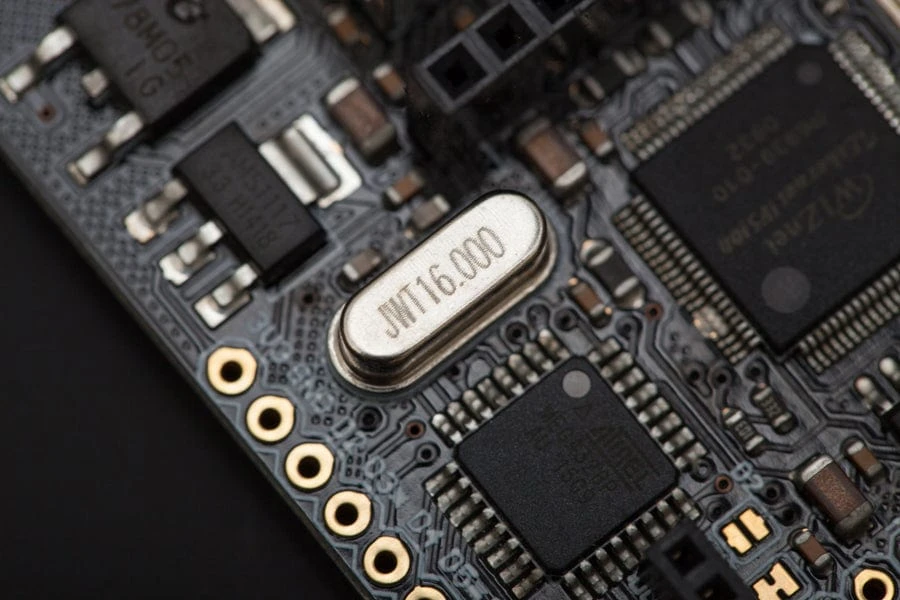

MCU:Atmega328P low voltage version (16Mhz)

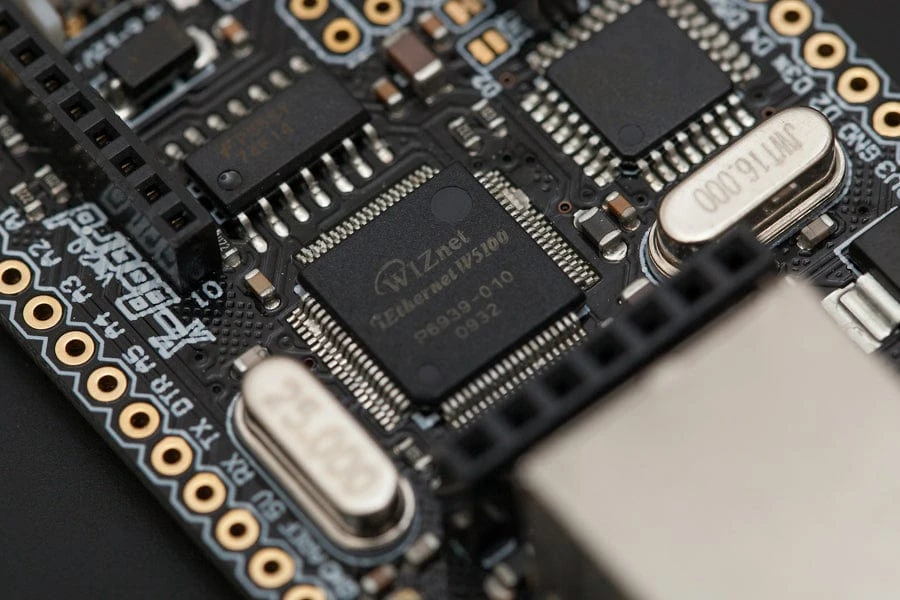

Ethernet: WIZ5100
Arduino Uno bootloader
Supply voltage:5~12v
Output voltage:5v/3.3v
Digital IO: 8
Analog In: 8
Environment Friendly: Rohs Compliance

Informational LED

PWR: indicates that the board and shield are powered
LINK: indicates the presence of a network link and flashes when the shield transmits or receives data
FULLD: indicates that the network connection is full-duplex
100M: indicates the presence of a 100 Mb/s network connection (as opposed to 10 Mb/s)
RX: flashes when the shield receives data
TX: flashes when the shield sends data
COLL: flashes when network collisions are detected

Optional Parts

XBee 2mW Wire Antenna – Series 2(ZB) (TEL0020)
Bluno bee

– Support wireless programming
APC220 Radio Communication Module

Note: By using the Xbee S2, the x-board will have the capability to establish a wireless network which is able to control up to 255 end points. Other wireless modules only support Point to Point communication.

Programmer

USB Serial Light Adapter

Cables
Mini USB cable
CAT 5 Ethernet Cable
